Figure 10


Download original image

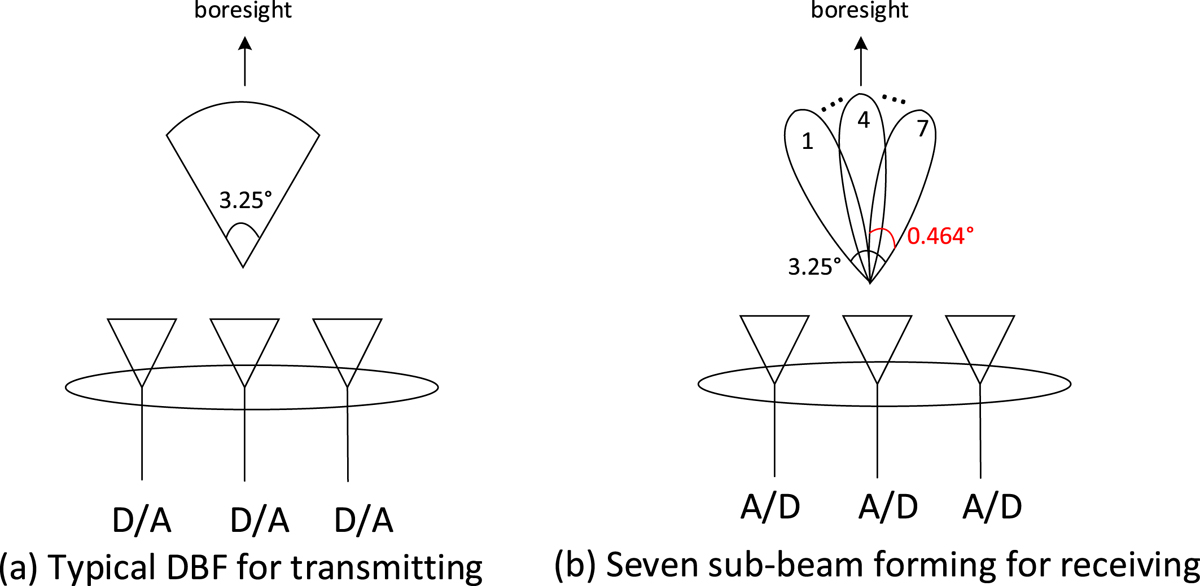

Schematic diagram of beam forming for transmitting and receiving in the AgileDARN radar. (a) Typical DBF for transmitting with a beamwidth of 3.25°. (b) Seven sub-beam forming for receiving to separate 3.25° into seven sub-beams of 0.464°.
