Figure 6


Download original image

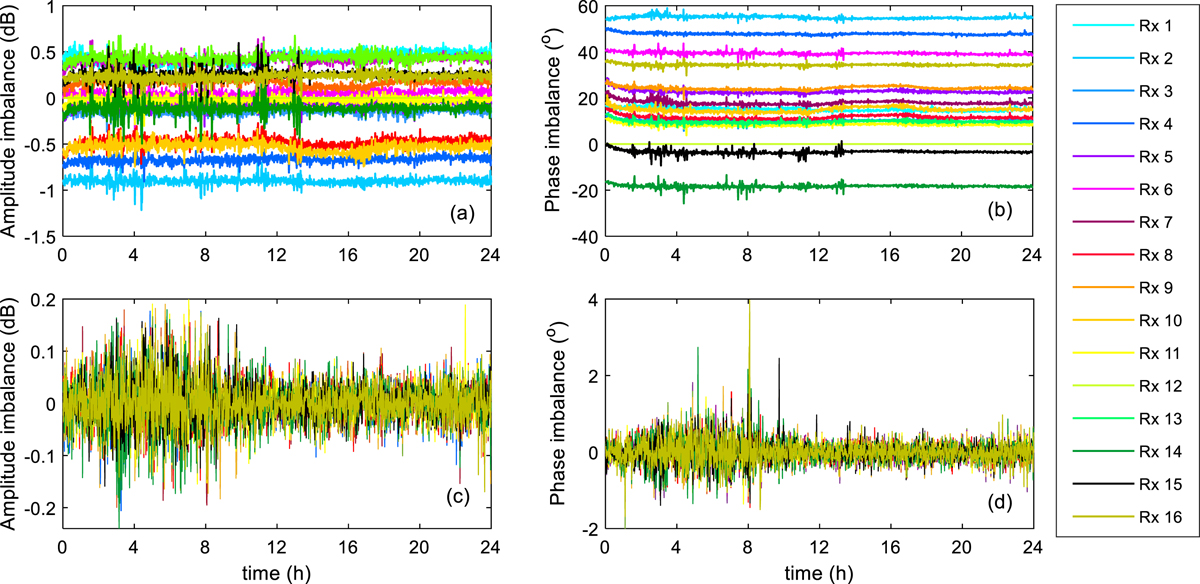

Receiver imbalances before (top) and after (bottom) calibration during the same observation interval depicted in Figure 5. (a) The amplitude imbalance before correction. (b) The phase imbalance before correction. (c) The amplitude imbalance after correction. (d) The phase imbalance after correction.
