Figure 8


Download original image

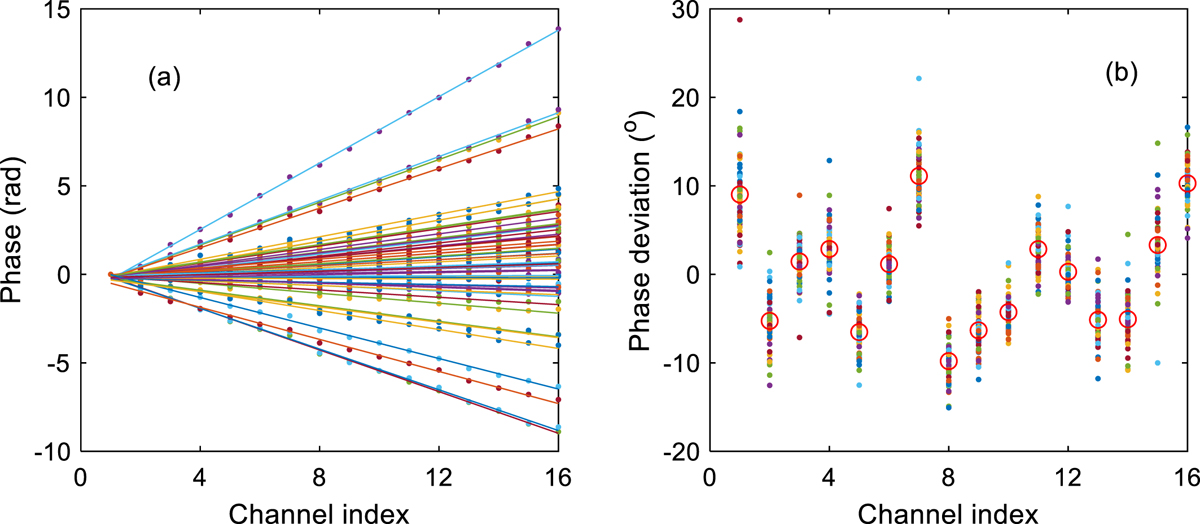

Phases of the echoes from meteor trails received by 16 receivers before correction. (a) The unwrapped phases of the 16 channels and the fitted straight lines. The dots with different colors denote different sets of phases of the 16 channels. The lines with different colors represent different fitted straight lines. (b) The phase deviation from the fitted lines. The dots with different colors denote the deviation between measured phases from different meteors and the fitted phases. The means of the deviations are presented as red circles. The means are between −10° and 10°, with a standard deviation (STD) of ~3°.
