Figure 9


Download original image

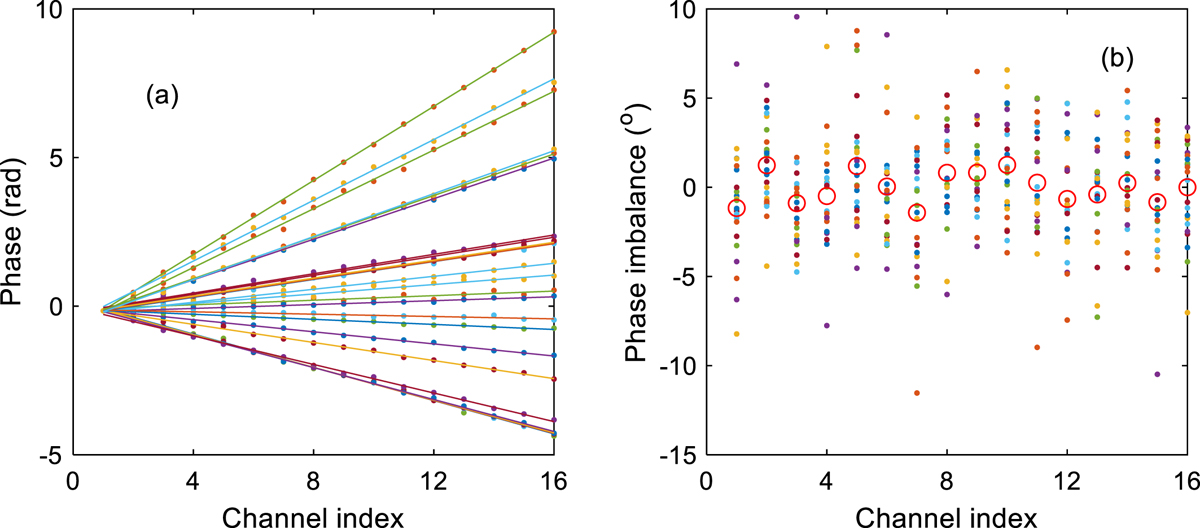

Phases of the echoes from meteor trails received by 16 receivers after correction. (a) The unwrapped phases of the 16 channels after correction and the re-fitted straight lines. The dots with different colors denote different sets of phases after correction of the 16 channels. The lines with different colors represent different re-fitted straight lines. (b) The phase deviation from the re-fitted lines. The dots with different colors denote the deviation between corrected phases from different meteors and the re-fitted phases. The means of the deviations after correction are presented as red circles. Comparing to Figure 8, the means after correction are reduced significantly to ±1°, with the same STD.
