Fig. 4


Download original image

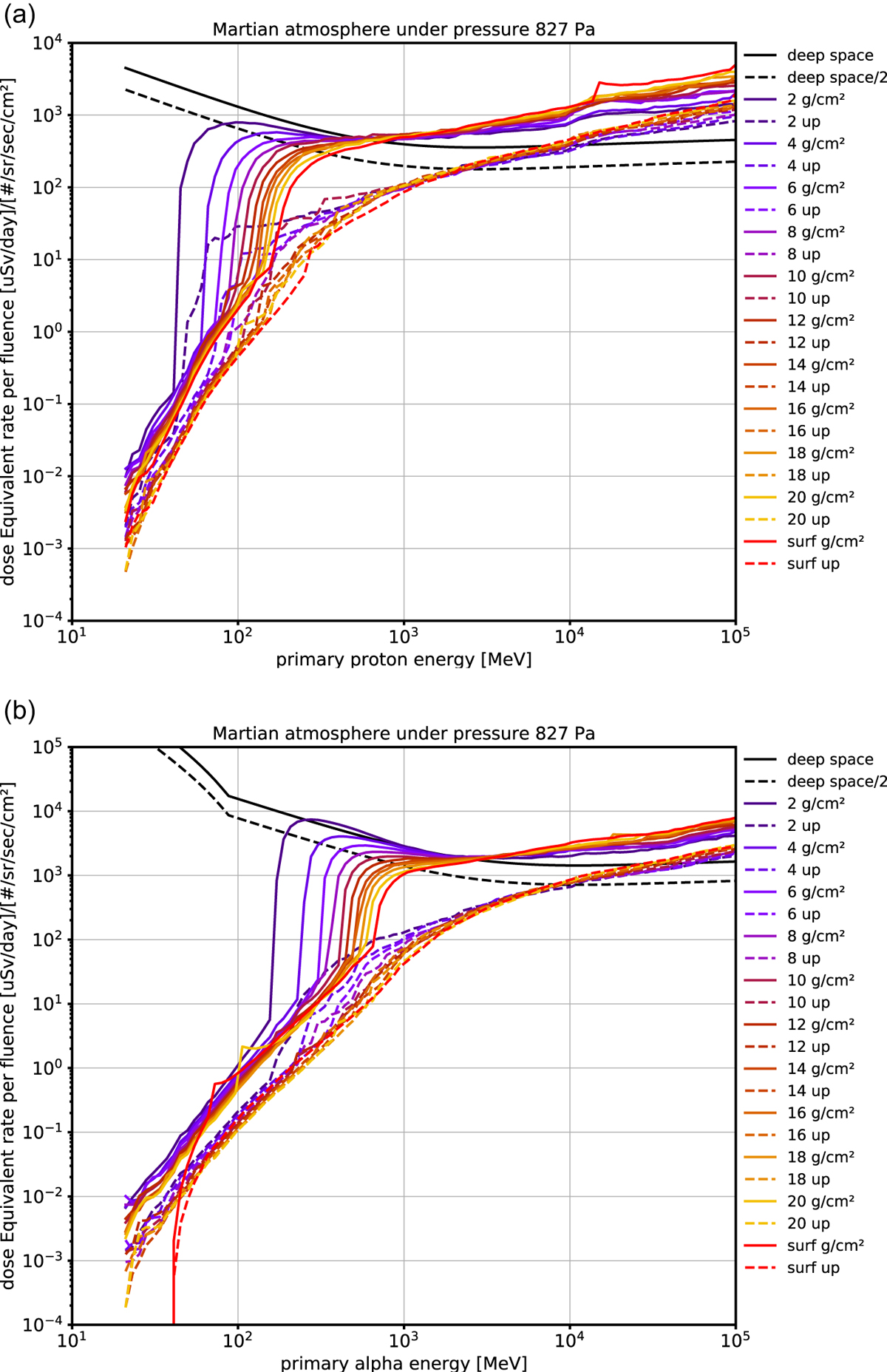

Dose equivalent rate per primary flux function for protons (a) and 4He ions (b) at different depth (2,4,6…20 and surface) of the Martian atmosphere with a surface pressure of 827 Pa. Line colors and properties are set to be same as in Figure 3.
