Figure 8
Download original image

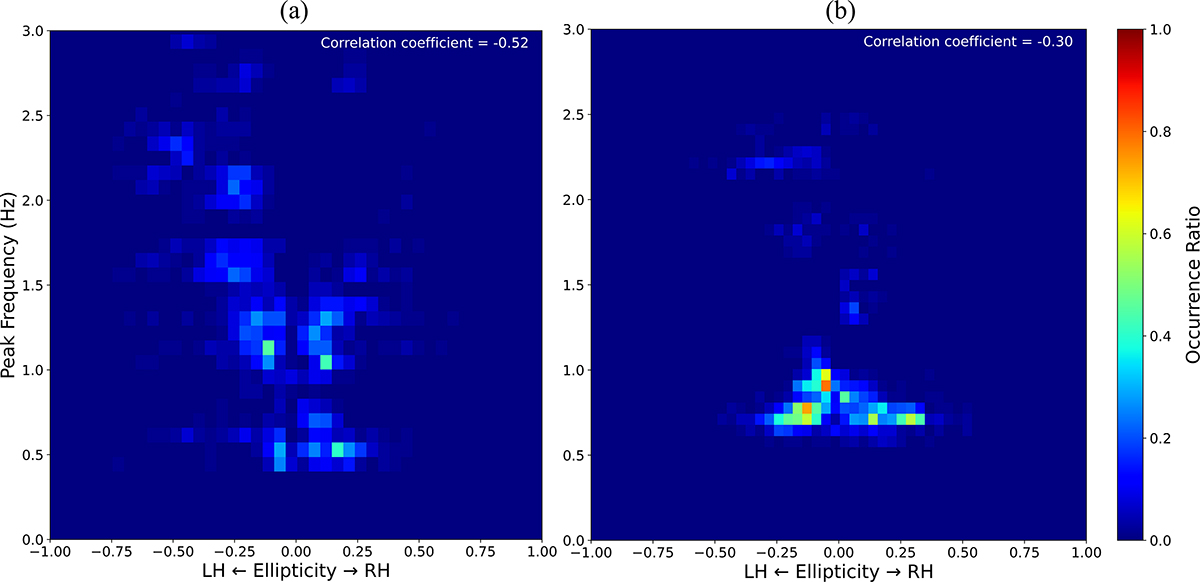

Heat maps of peak frequency (Hz) and ellipticity (tan β) of the Pc1 pulsations during storm (a) and non-storm (b) periods. The occurrence ratio of a grid that presents maximum occurrence rate is set as 1 and others are normalized from the ratio to the maximum rate. Top-right texts indicate Pearson correlation coefficients between ellipticity and peak frequency.
