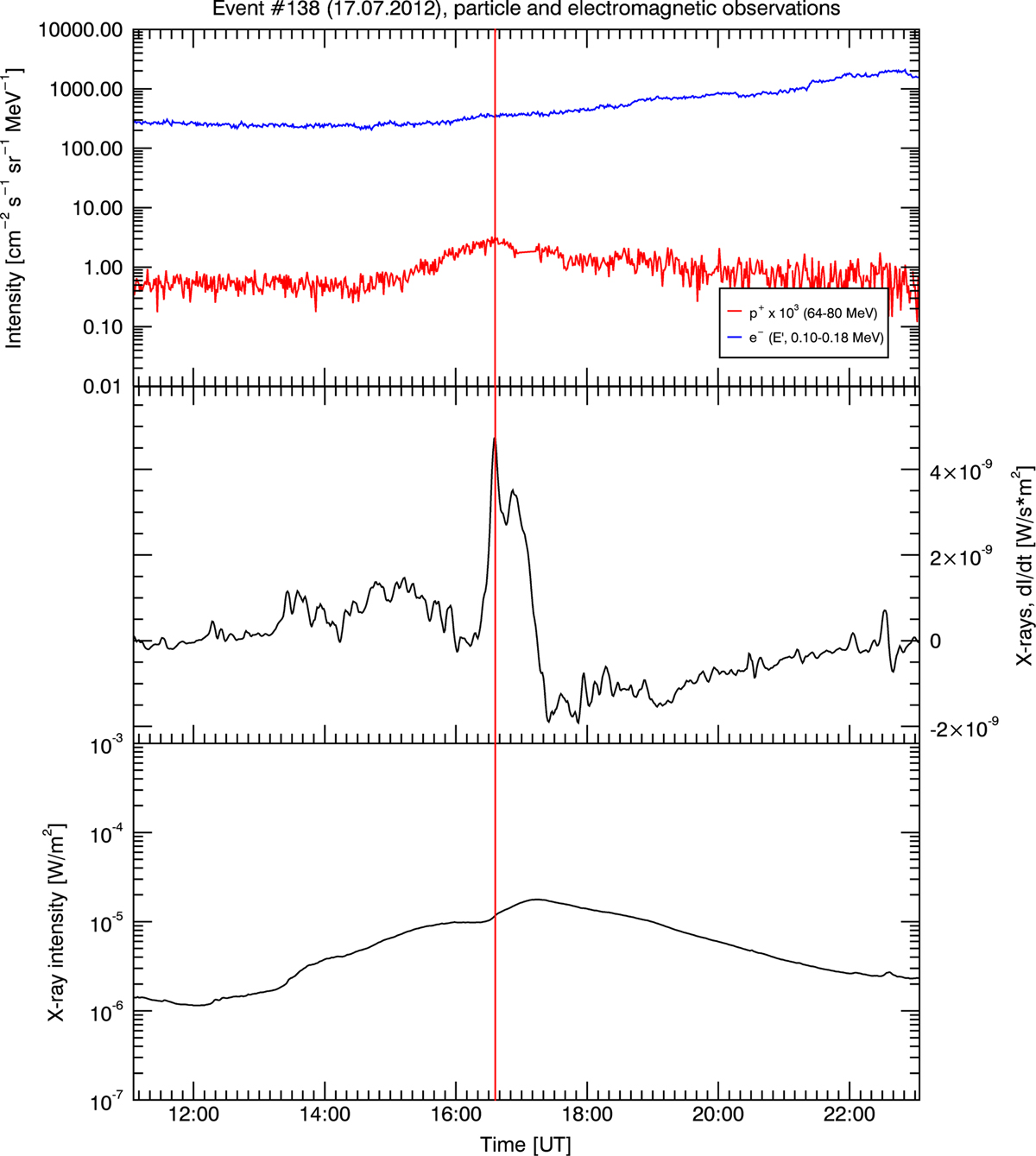

Fig. 7.


Download original image

The particle and X-ray observations related to the SEP event of 17 July 2012 (event 138). Shown here are proton and electron intensities (A, the former multiplied by 103), the time derivative of the soft X-ray intensity (B) and the soft X-ray intensity (C). The moment of the maximum of dI/dt for X-ray intensity is marked with a vertical red line. The particle intensities have been backshifted in time by (L/v – 500) seconds, where L = 1.13 AU and v = the mean speed of the particle species of interest.
