Fig. 2

image image

Download original image Download original image

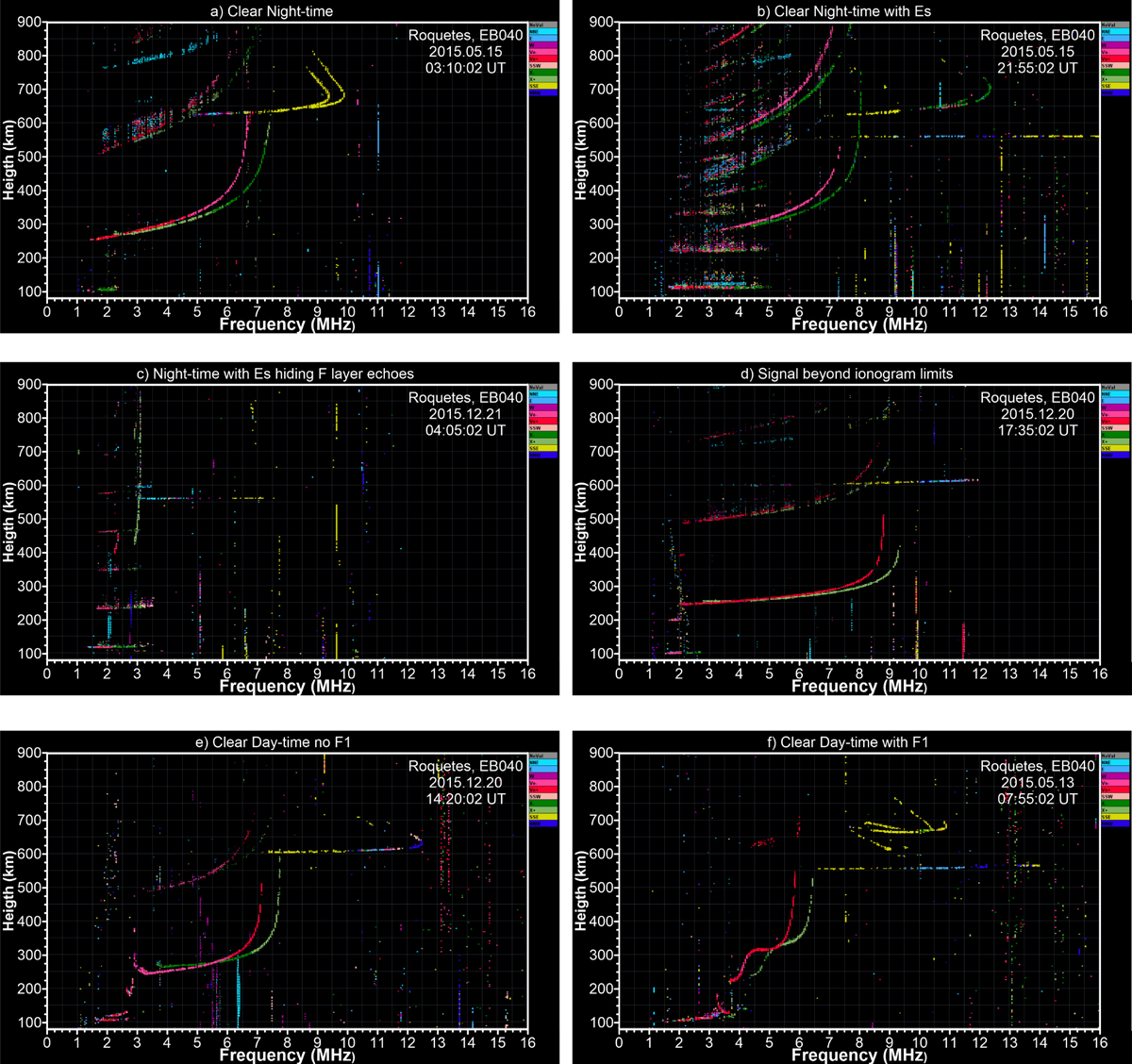

(a-l). Example of ionograms recorded at Ebro Observatory (EB040 station) in different ionospheric conditions as indicated in the legends.
