Fig. 6


Download original image

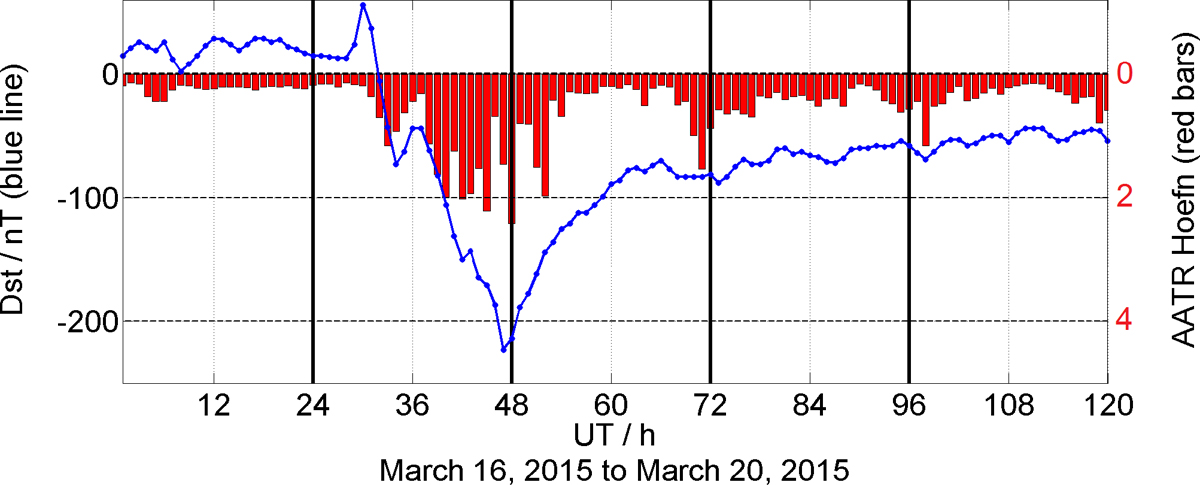

Along Arc TEC Rate (AATR) at Hoefn/Iceland in mm/s (red bars) and the corresponding Dst values (blue line). For the calculation of the AATR a Δt of 30 s were chosen using 1 Hz GNSS data.
