Fig. 14


Download original image

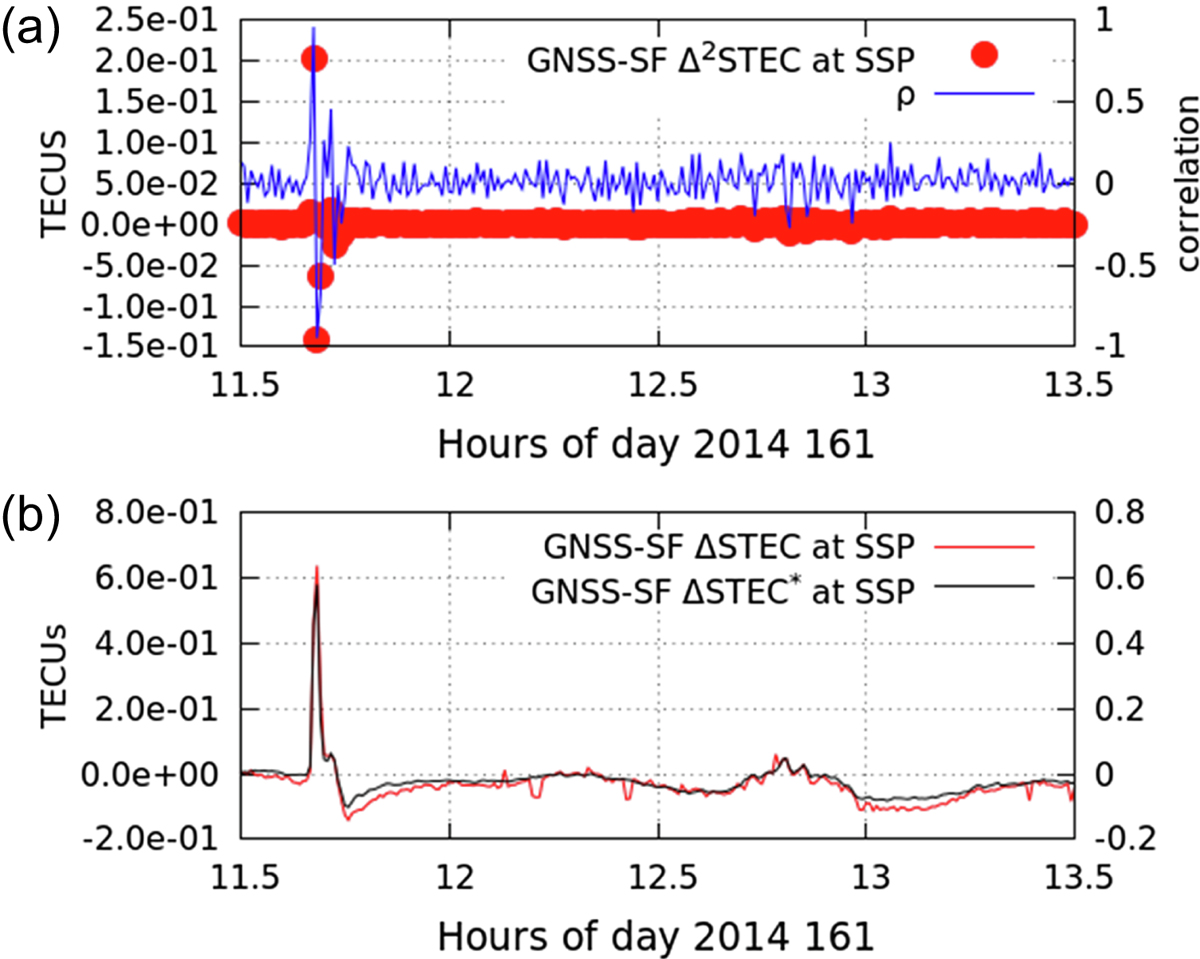

STEC variations for DoY 161 (June 10) in 2014 from the same GNSS data as those of Figure 13. (a) Δ22STEC (red) and ρ (blue) at the SSP. (b) ΔSTEC (red) and ΔSTEC* (integrated from Δ22STEC) (black).
