Fig. 5


Download original image

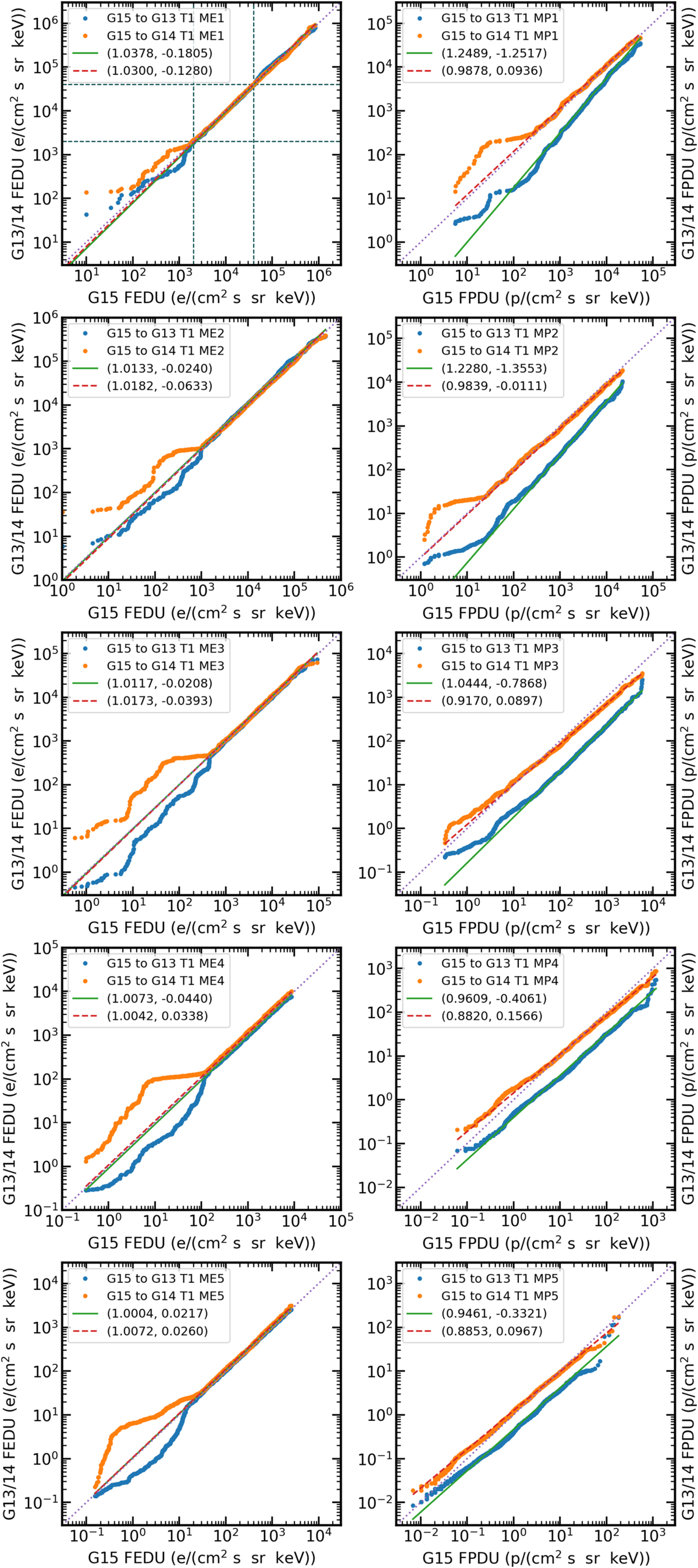

Statistical asynchronous regressions (SAR) of GOES-15 mapped to GOES-13 and -14 particle fluxes during July 2010. The left column shows the results for the MAGED Telescope 1 ME1-ME5 channels. The right column shows the results for the MAGPD Telescope 1 MP1-MP5 channels. The dotted diagonal line represents the identity relationship. The results of the Theil-Sen fits to the mappings are described in the legends by a pair of numbers representing the first- and zeroth-order terms of a linear fit to log10(flux). FEDU = differential unidirectional electron flux. FPDU = differential unidirectional proton flux.
