Fig. 6


Download original image

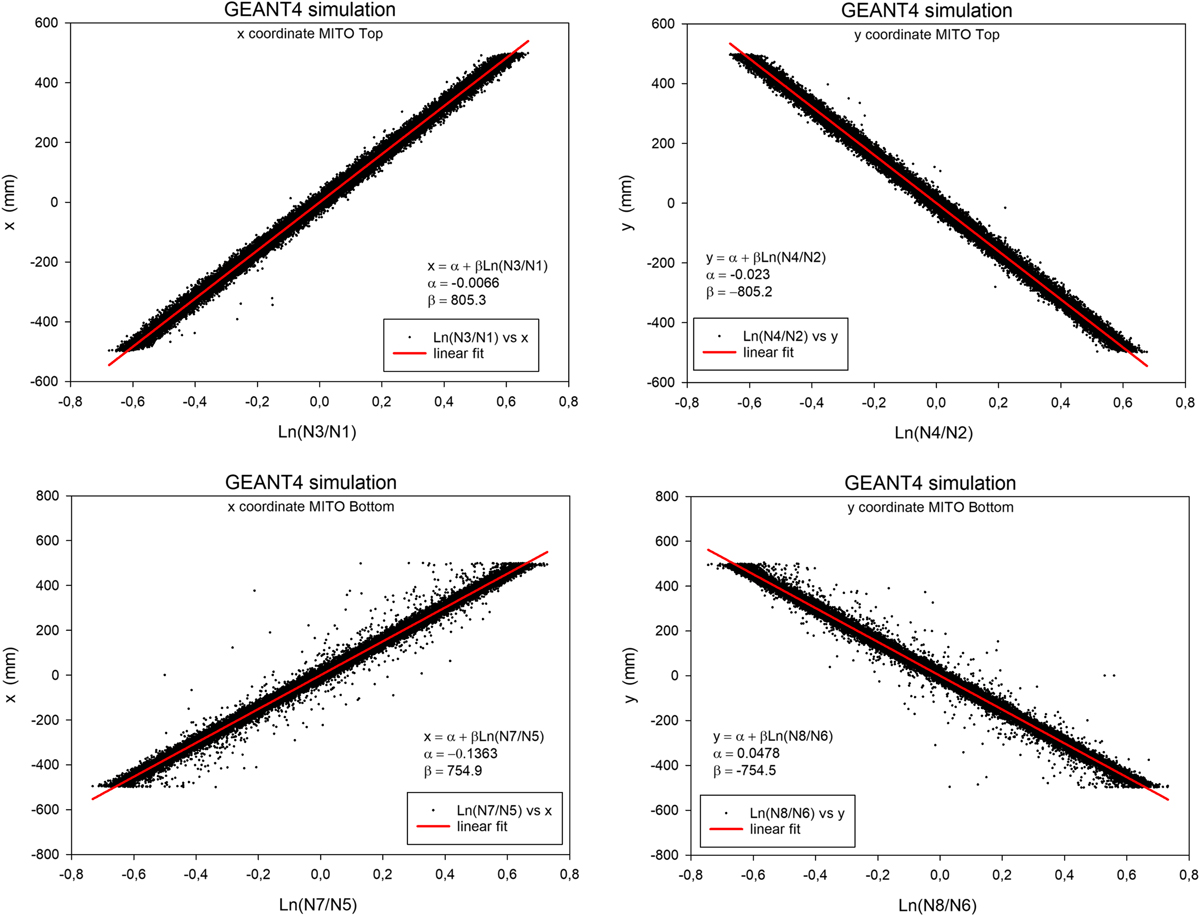

Scatter plots showing the relationship between the simulated coordinate and the logarithm of the ratio between the total light emitted by opposite faces on the corresponding axis.
