Fig. 5


Download original image

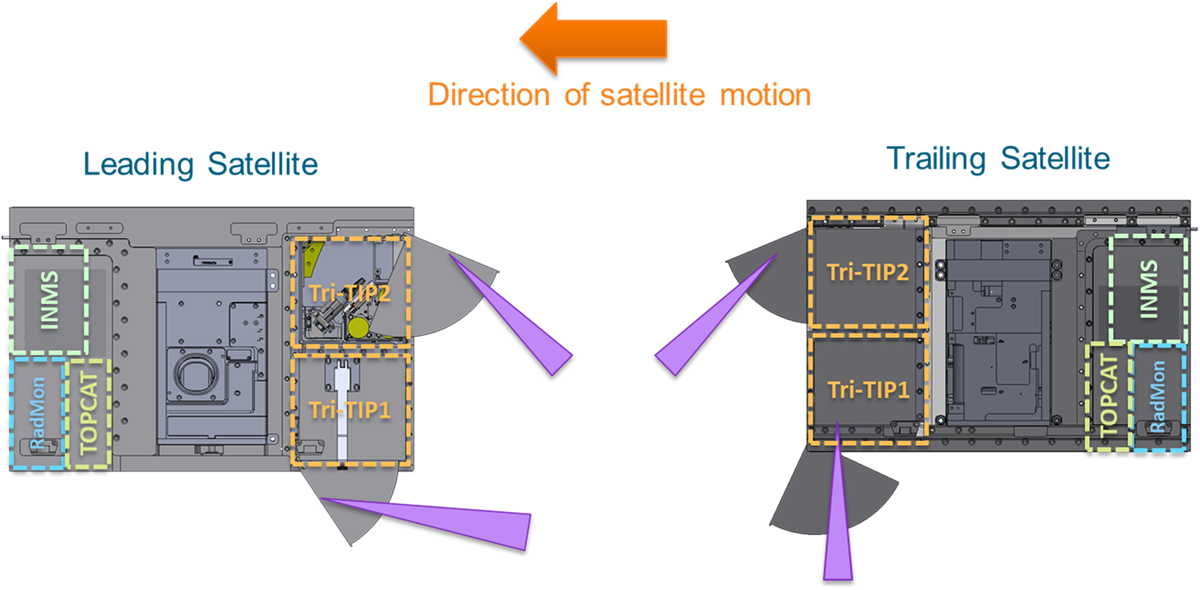

Schematic layout of the CIRCE payloads within the lead and trail satellite buses. The UK’s IRIS suite of payloads occupies the front 2U of the leading satellite, and during night-time, the rear of the trailing satellite. The bus avionics are located in the centre 2U of each bus. The US Tri-TIP payloads occupy the rear 2U of the leading satellite, and during night-time, the front of the trailing satellite. This enables the Tri-TIP instruments to image the same volume of the ionosphere to support tomographic reconstruction. (Adapted from Nicholas et al., 2019, their Fig. 1).
