Fig. 9


Download original image

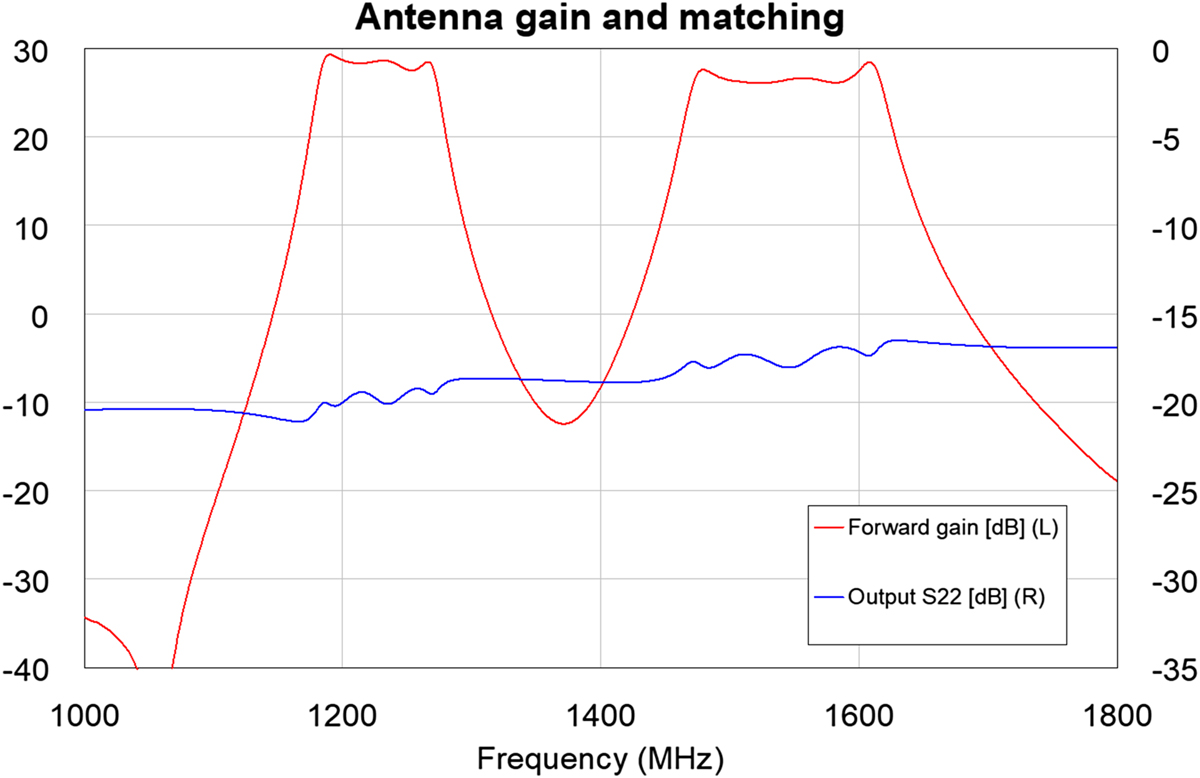

Showing the performance of the bandpass filter and amplifiers within the TOPCAT II stacked patch antenna. The gain trace (red) shows a good selection of the L1/L2/L5 bands, and strong rejection of signals outside of these frequency bands. The blue trace shows the return loss at the output.
