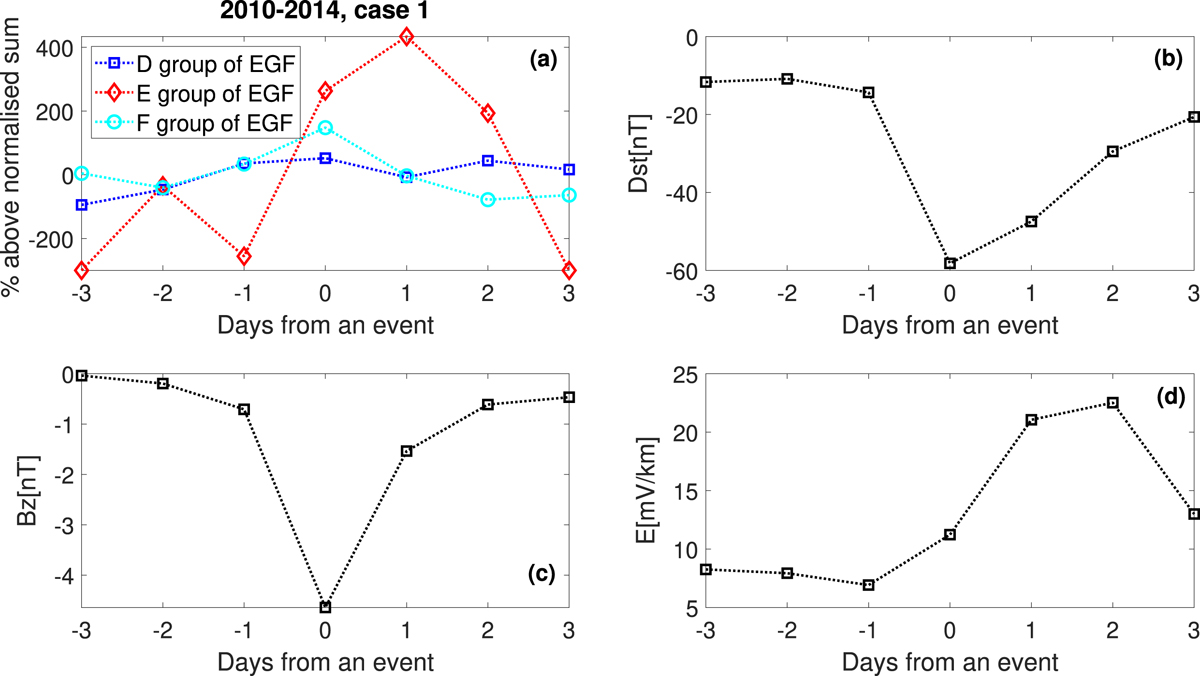

Fig. 3


Download original image

% above normalised sum of daily electrical grid failures (a), averaged over the number of events (b) Dst-index [nT], (c) BZ [nT] component of HMF and (d) computed geoelectric field E [mV/km], during the geomagnetic storms with BZ < −10 nT (case 1), for years 2010–2014.
