Figure 4


Download original image

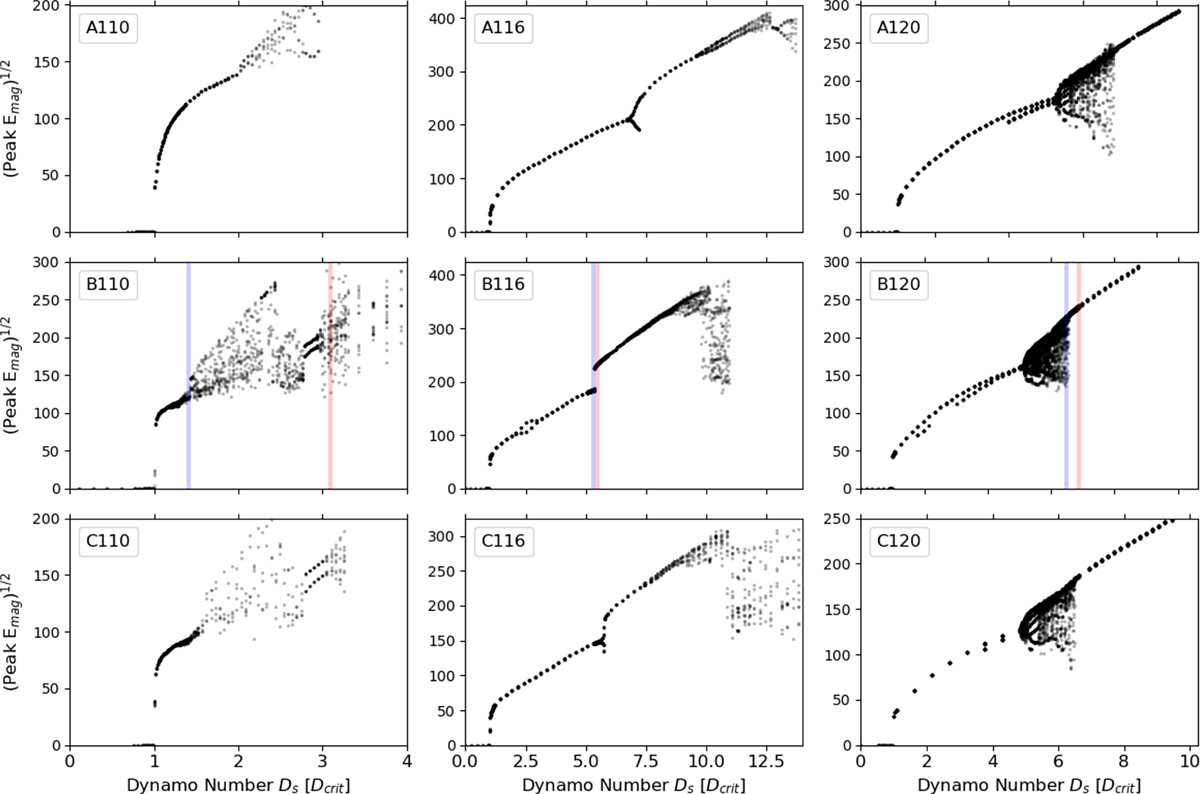

Bifurcation diagrams for each parameter set are shown in Table 2. Dynamo numbers (D) are normalized to the critical value (Dcrit) for each sequence, as listed in the rightmost column of Table 2, The red and blue lines highlight the simulations chosen as case studies for Figure 5. The panels are organized such that magnetic diffusivity is the same in each column, and increases from left to right.
