Figure 11


Download original image

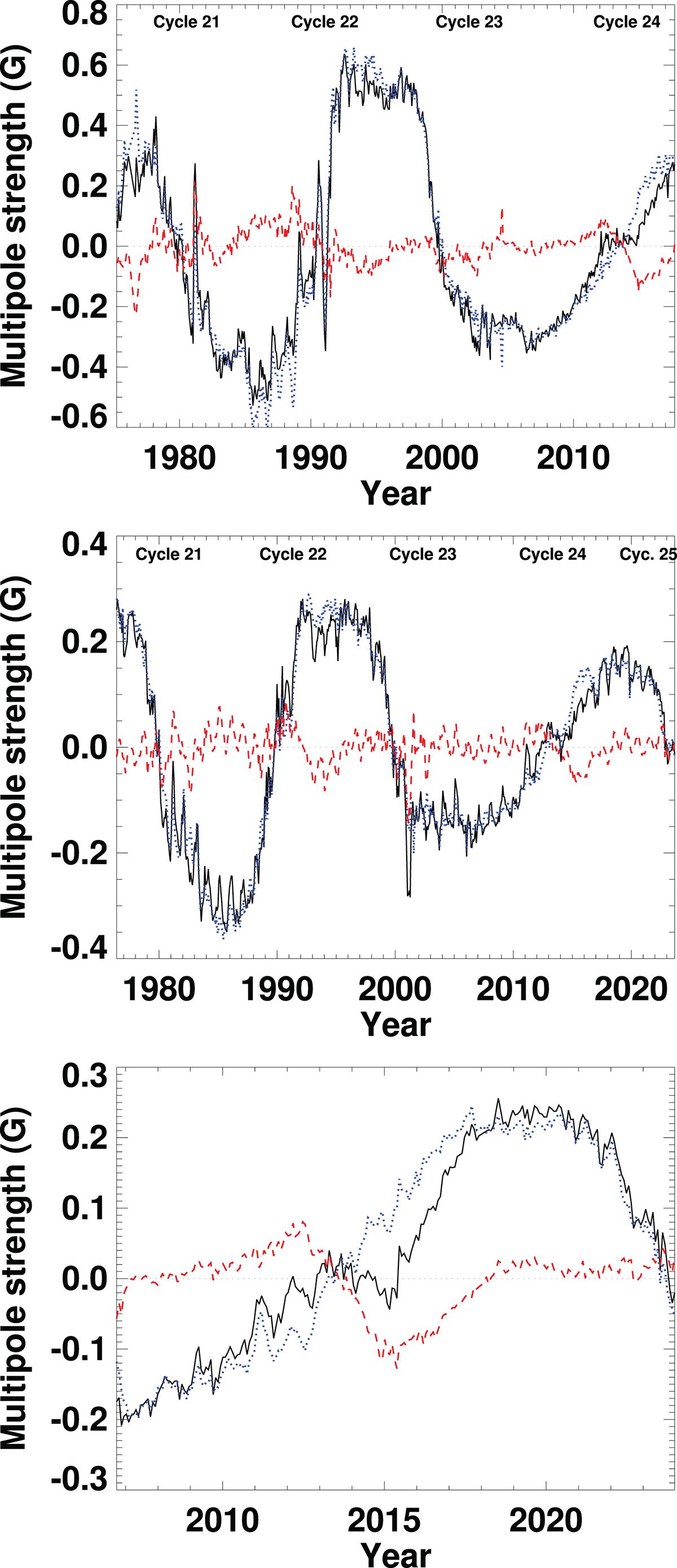

For KPVT and SOLIS (top), Wilcox (middle), and GONG (bottom) data the signed sum of all (black solid curves), odd-order (blue dotted curves) and even-order (red dashed curves) axial strengths are plotted against time.
