Figure 7


Download original image

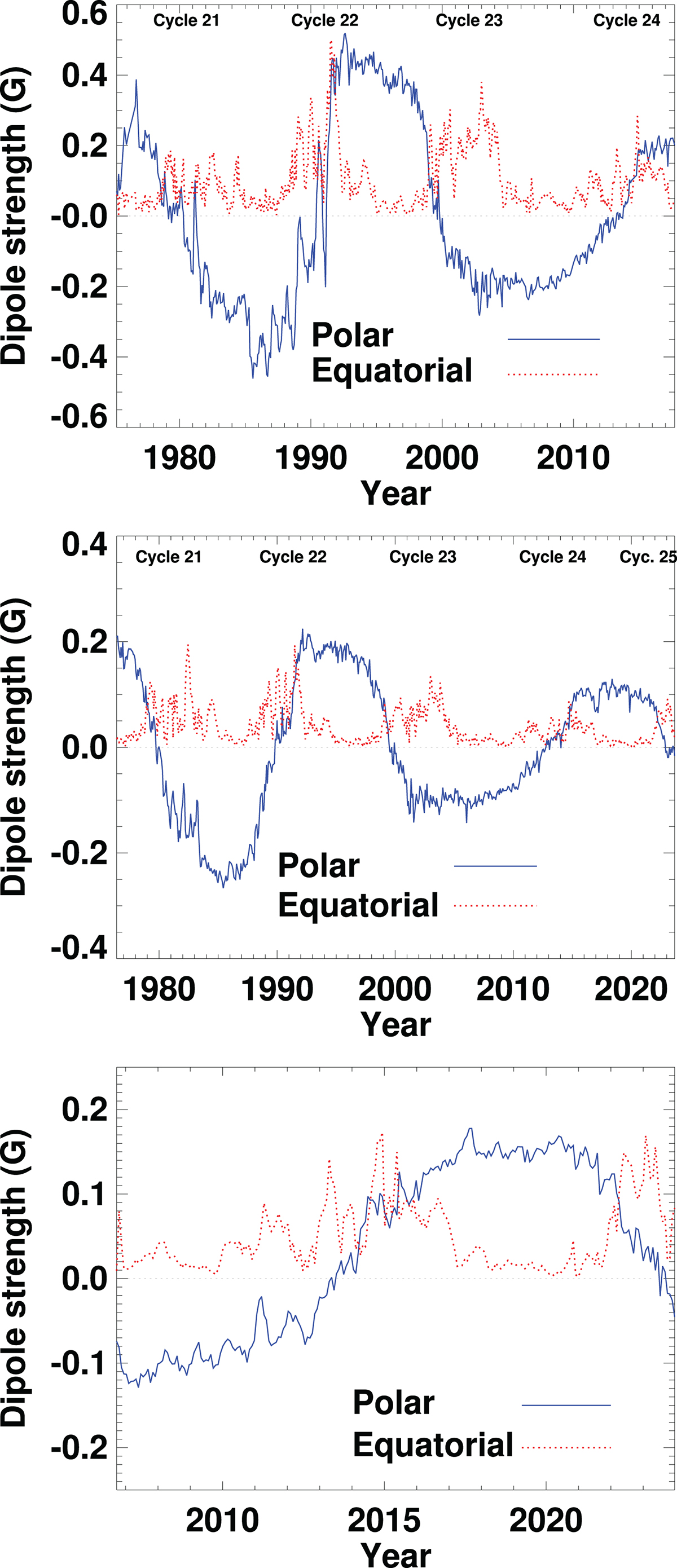

For KPVT and SOLIS (top), Wilcox (middle), and GONG (bottom) data the axial (blue solid lines) and equatorial (red dotted lines) dipole components are plotted against time. Adapted and updated from Petrie (2013).
