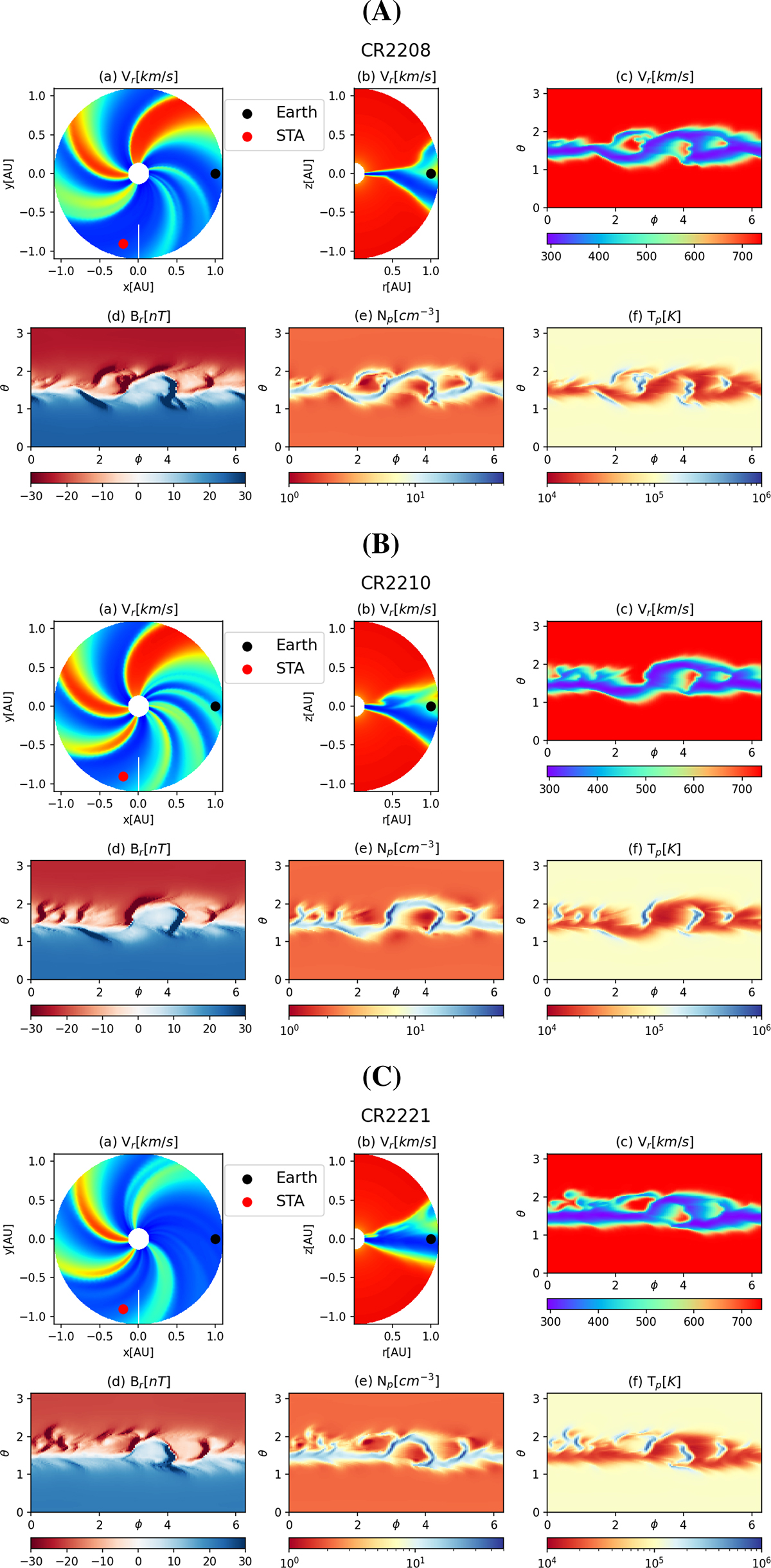

Snapshots of the outputs of the inner heliospheric model for CR2208 (A), CR2210 (B), and CR2221 (C). In all the plots, panels (a), (b), and (c) show the radial velocity V_r, (d) the radial magnetic field B_r, (e) the proton number density N_p, and (e) the proton temperature in logarithm scale. Top-left panels are in the r–ϕ equatorial plane, top-middle panels are in the r–θ meridional plane at 0° longitude and bottom panels are in the θ–ϕ plane at r = 1 AU. In all panels (a) and (b), the black and red circles represent the projected location of Earth and STA.
