Figure 4


Download original image

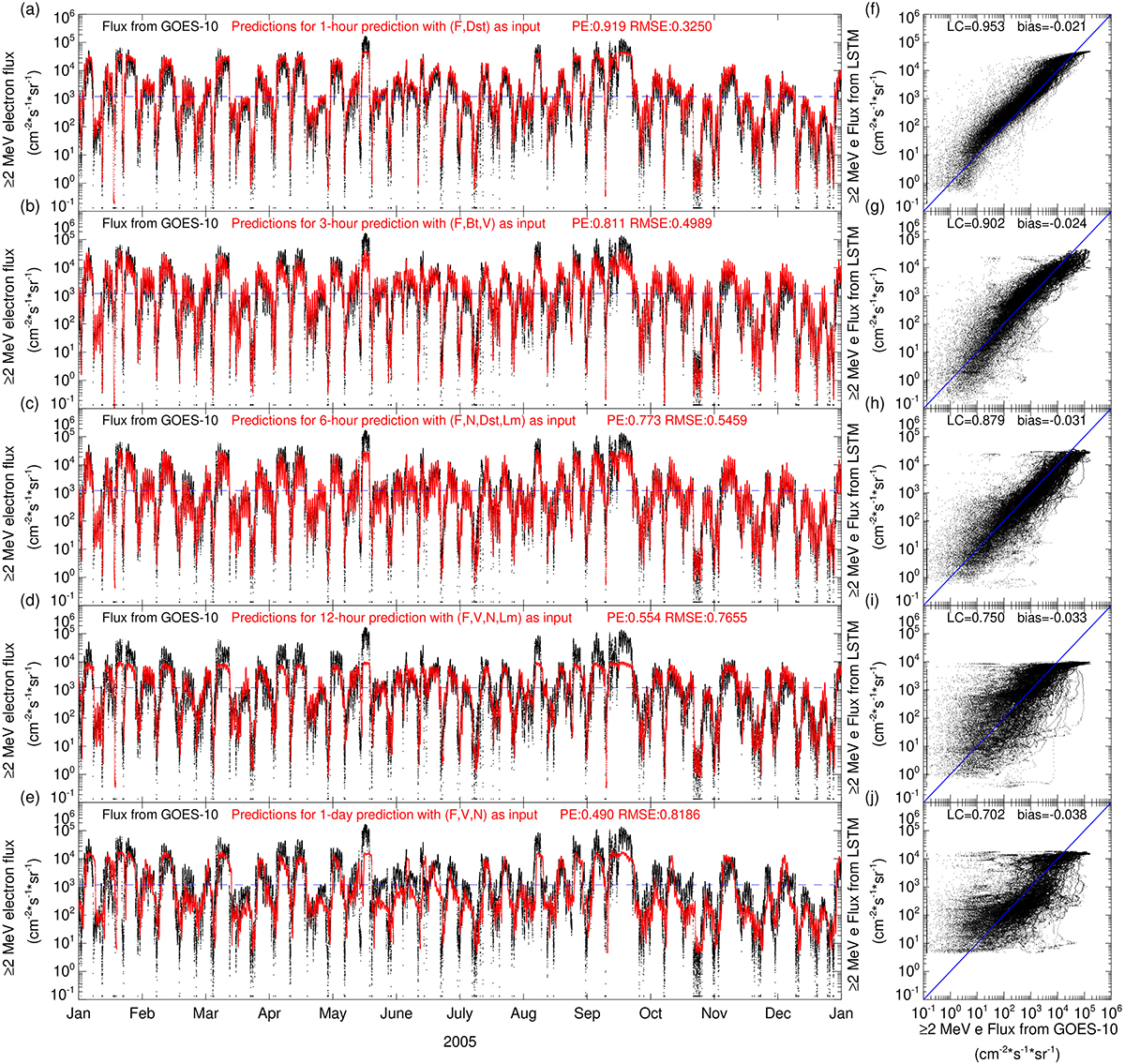

The comparisons of ≥2 MeV electron fluxes between the observations from GOES-10 satellite (black dots) and the predictions of the LSTM models (red dots) (a) with (Flux, Dst) as inputs for 1-hour prediction, (b) with (Flux, Bt, Vsw) as inputs for 3-hour prediction, (c) with (Flux, N, Dst, Lm) as inputs for 6-hour prediction, (d) with (Flux, Vsw, N, Lm) as inputs for 12-hour prediction, (e) with (Flux, Vsw, N) as inputs for 1-day prediction, respectively.
