Fig. 4
Download original image

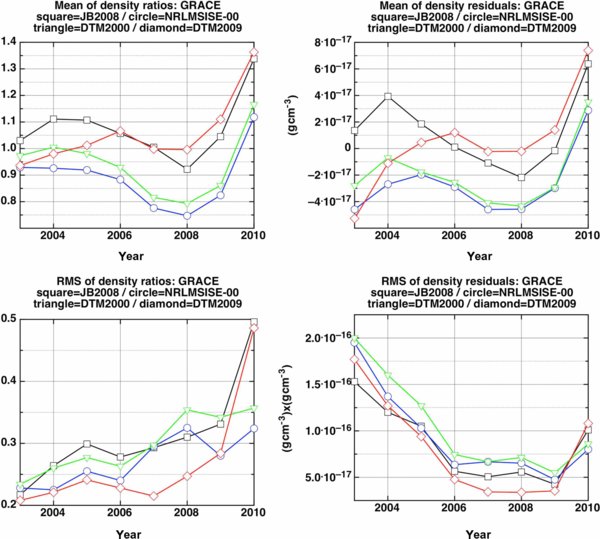

The mean (top left) and RMS (bottom left) of the GRACE density ratios, and the mean (top right) and RMS (bottom right) of the GRACE density residuals, per year (JB2008: black; NRLMSISE-00: blue; DTM2000: green; DTM2009: red).
