Fig. 13.


Download original image

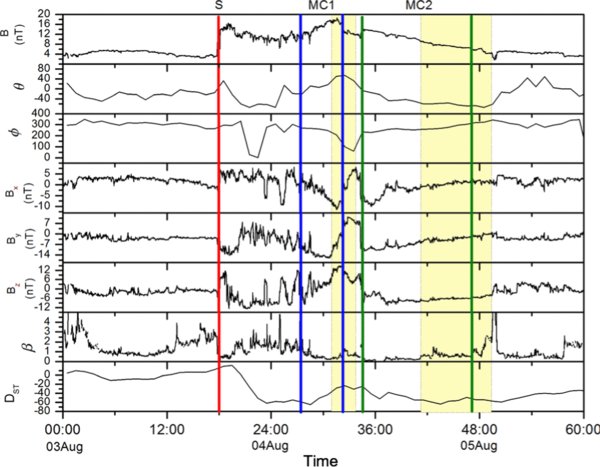

A plot of magnetic field parameters from 3 to 5 August (12:00 UT), 2010. Top to bottom: the magnetic field strength (B), the elevation (θ) and azimuth (ϕ) of the magnetic field direction, three-dimensional magnetic field components (Bx, By, Bz), plasma beta obtain from Wind spacecraft and 1-h averaged Dst index. Red line indicates the shock while the region between blue lines is first magnetic cloud (MC1) followed by second magnetic cloud (MC2) shown between green lines.
