Fig. 14.


Download original image

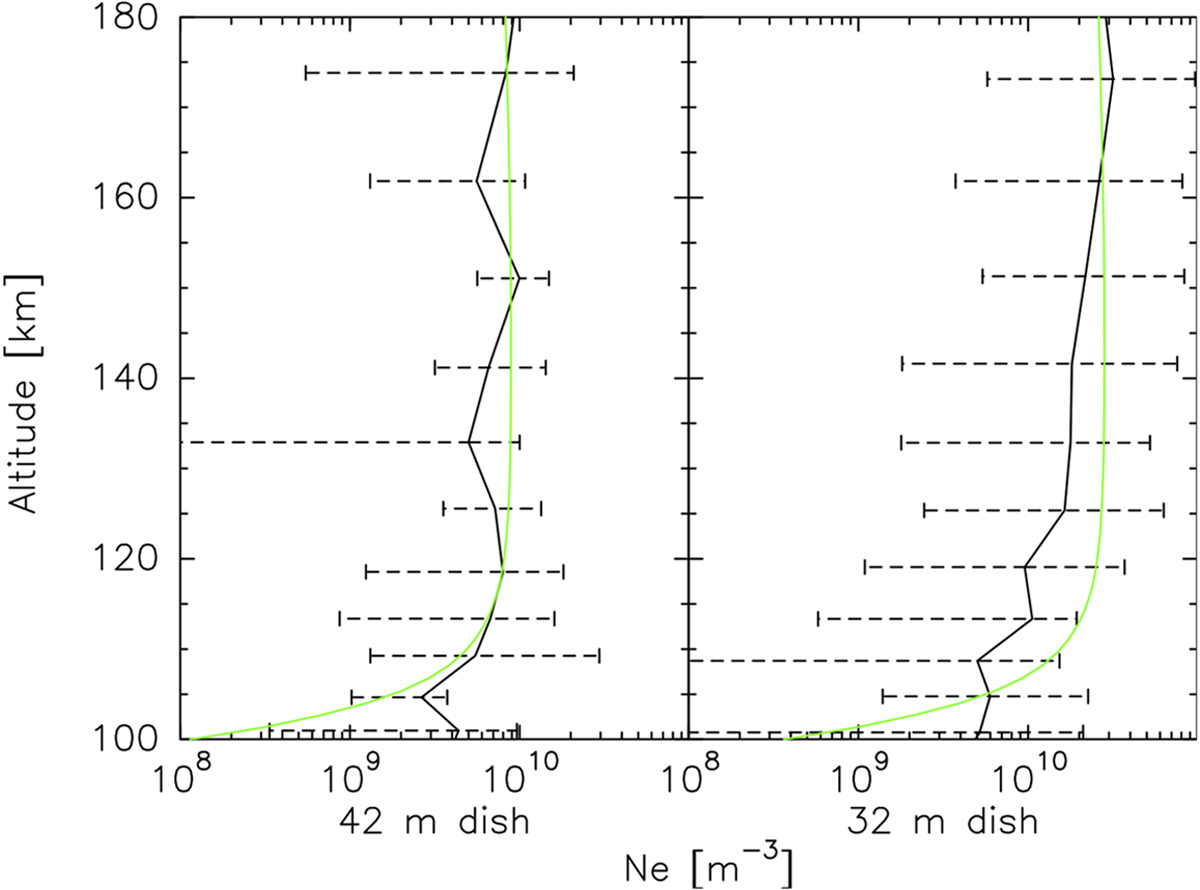

The dark lines are the electron densities as in Figure 12 (upper left panel). The continuous green lines are the electron density deduced from the transport code. Left: the 42 m antenna (fixed, parallel to B). Right: the 32 m antenna (parallel to SPP field of view).
