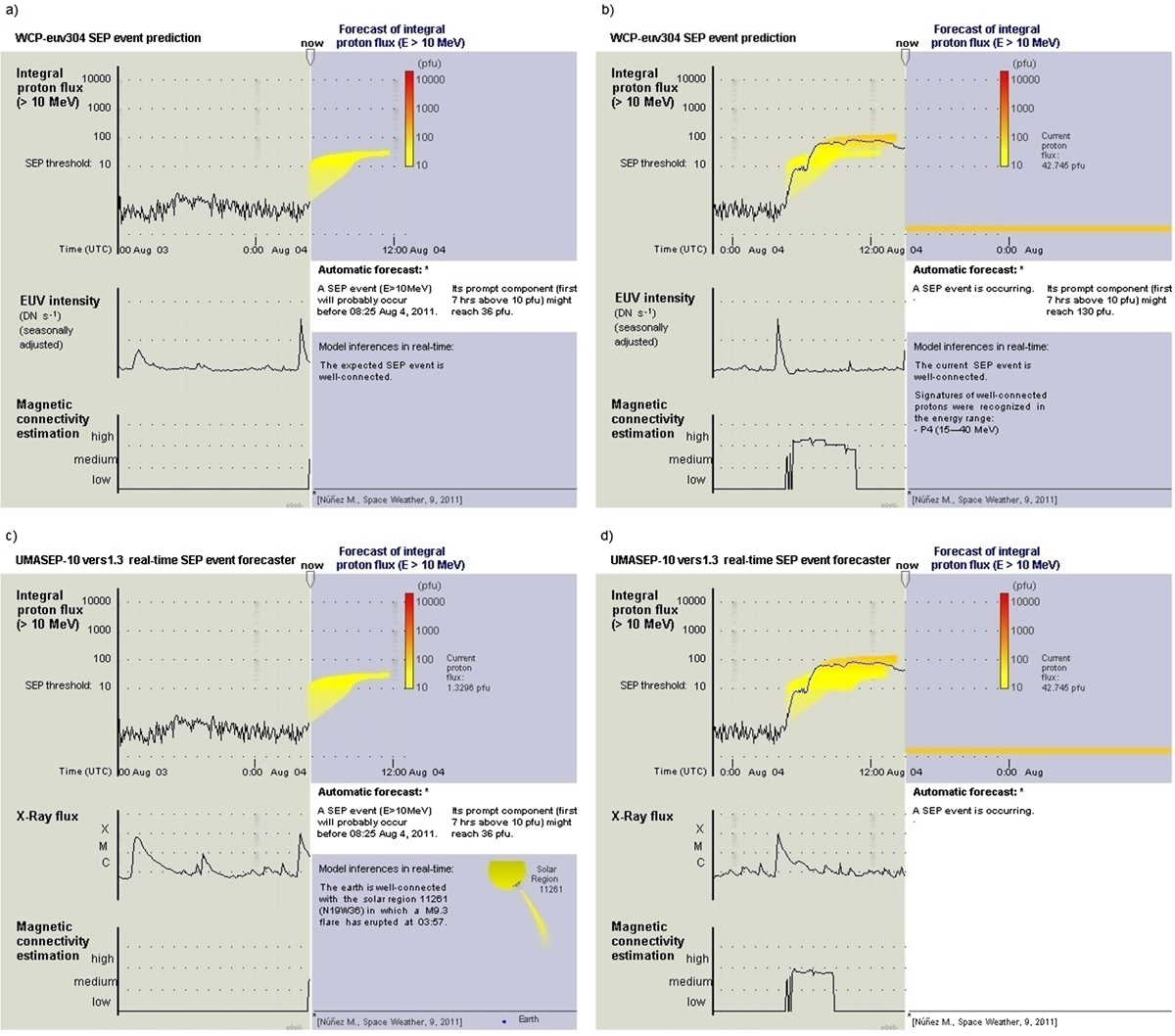

Outputs of WCP-euv304 and WCP-sxr models after processing data at 6:35 UT on August 4, 2011. (a) shows the prediction of WCP-euv304 at 4:40 UT, (b) the subsequent evolution of the >10 MeV integral proton flux after WCP-euv304 prediction, (c) the prediction of WCP-sxr, which was issued at the same time, and (d) the subsequent evolution of the >10 MeV integral flux after the WCP-sxr prediction.
