Fig. 10


Download original image

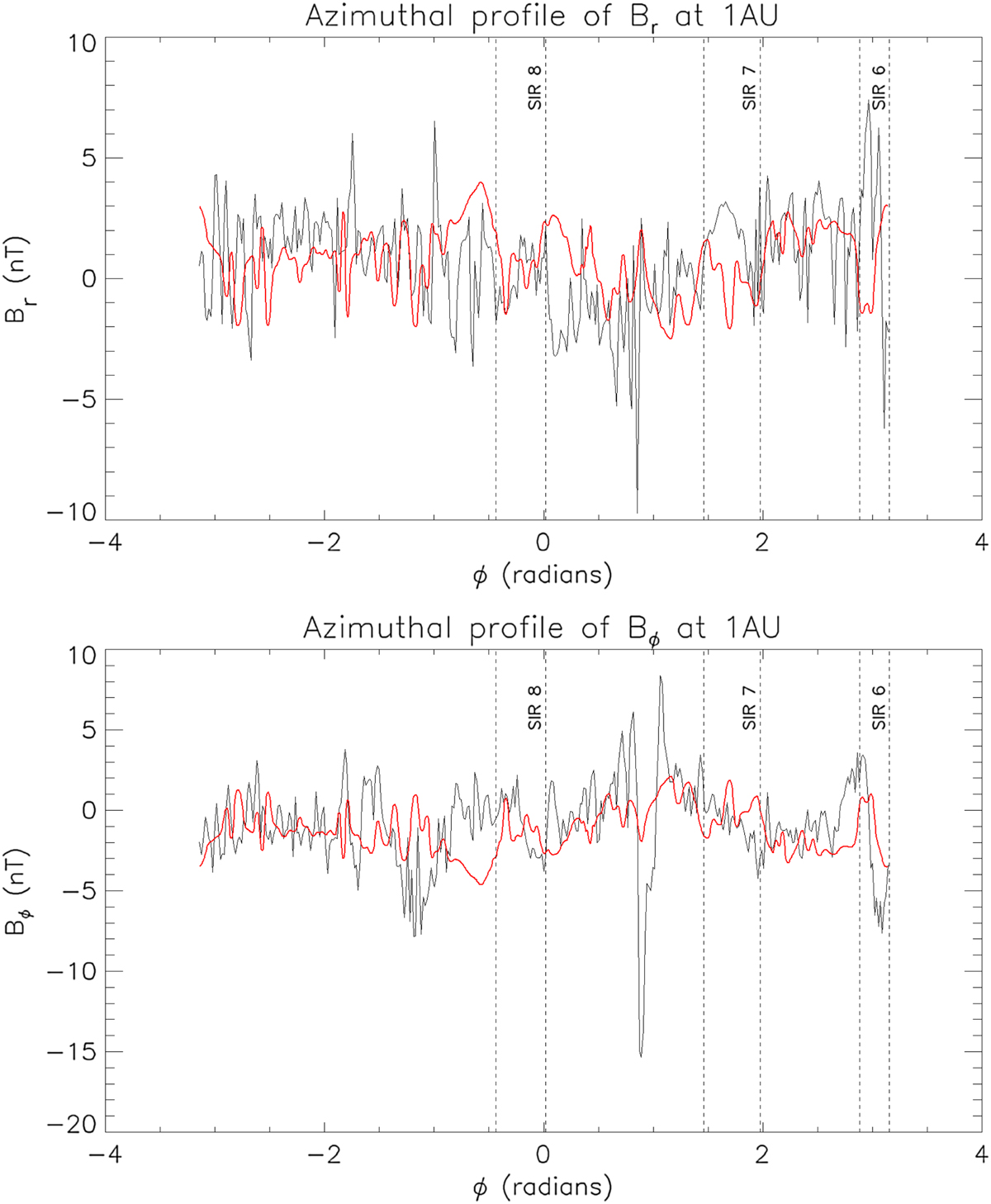

March 2009: azimuthal profiles of the radial (top) and azimuthal (bottom) components of B at 1 AU resulting from RIMAP (red) in comparison with the input in situ measurements (black). This figure shows also the longitudinal locations of SIRs/CIRs (vertical dashed lines) as derived automatically with STEREO data (Jian et al., 2019). Time direction runs from right to left.
