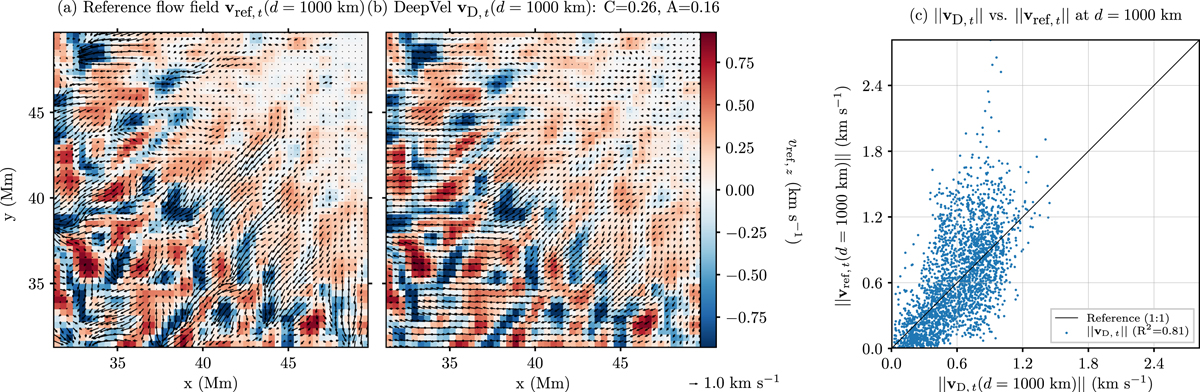

Below the surface velocity inversions, MURaM-ARs dataset. (a) Patch of 50 by 50 pixels2 extracted from the 30-min-averaged transverse velocity field vD,t(d, ti) inferred by DeepVel at geometrical depth d = 1000 km. The time-averaged vertical velocity vref,z(d = 1000 km, ti) computed by the MURaM-ARs simulation and resampled to the SDO/HMI resolution is displayed as colored background. (Right column) Scatterplot comparing amplitudes ||vD,t|| to ||vref,t||. The black line represents the expected solution (i.e., a coefficient of determination R2 = 1).
