Fig. 1


Download original image

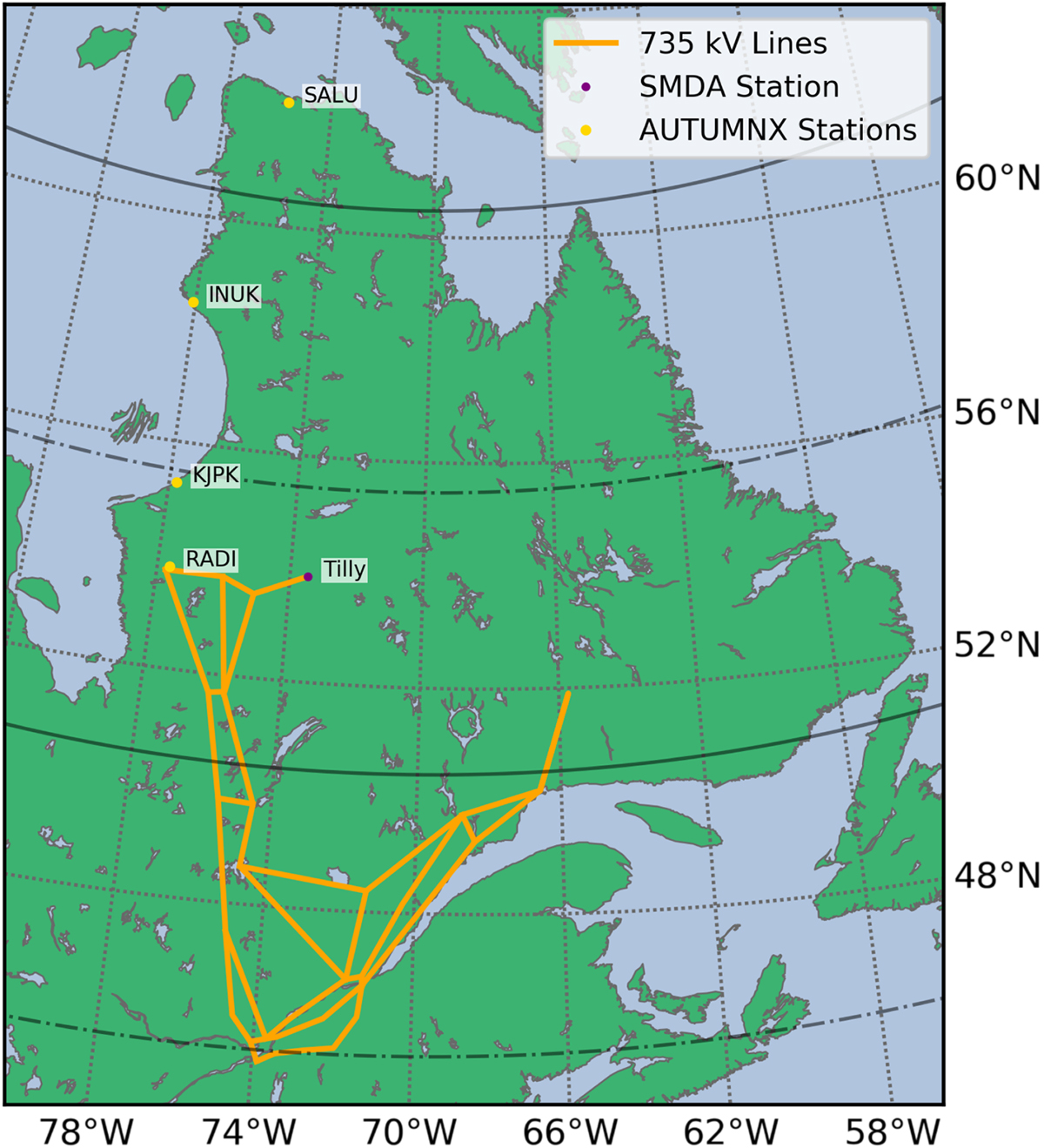

The region of interest. Magnetometers used are indicated in yellow. 735 kV Hydro-Québec transmission lines are shown in orange, with the Tilly transformer substation from which EHD data is used indicated in purple. Dot-dash lines indicate 55° and 65° corrected geomagnetic latitude, solid lines indicate 60° and 70° latitude.
