Agora – Project report

Fig. 11


Download original image

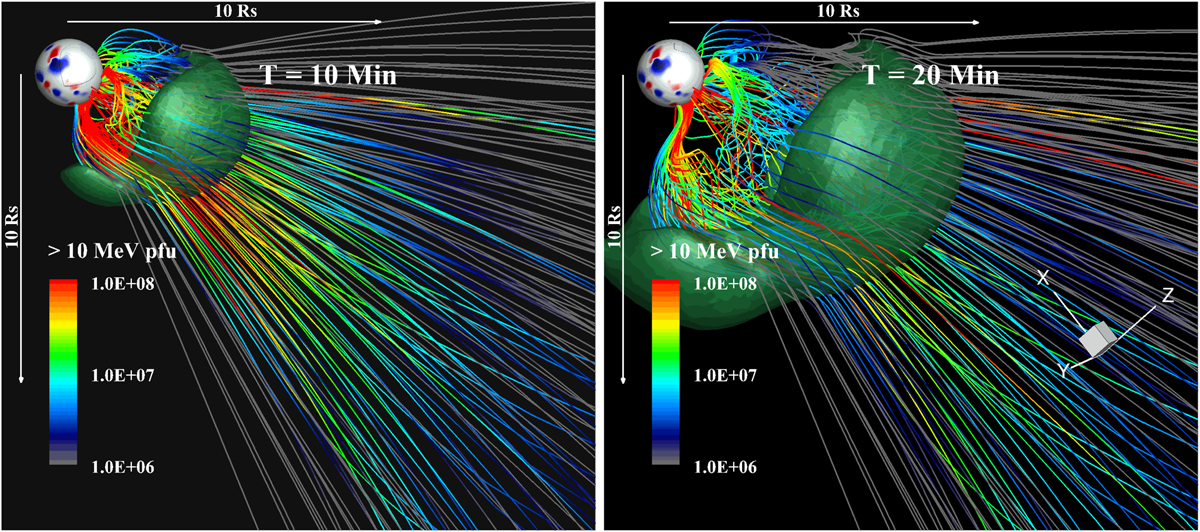

Distribution of the energetic particles (> 10 MeV) along the extracted magnetic field lines at 10 min (left panel) and 20 min (right panel) after the eruption of CME. The flux is in the unit of particle flux unit (pfu, particles/cm2/s/sr). The green isosurface represents the leading edge of the CME.
