Figure 9


Download original image

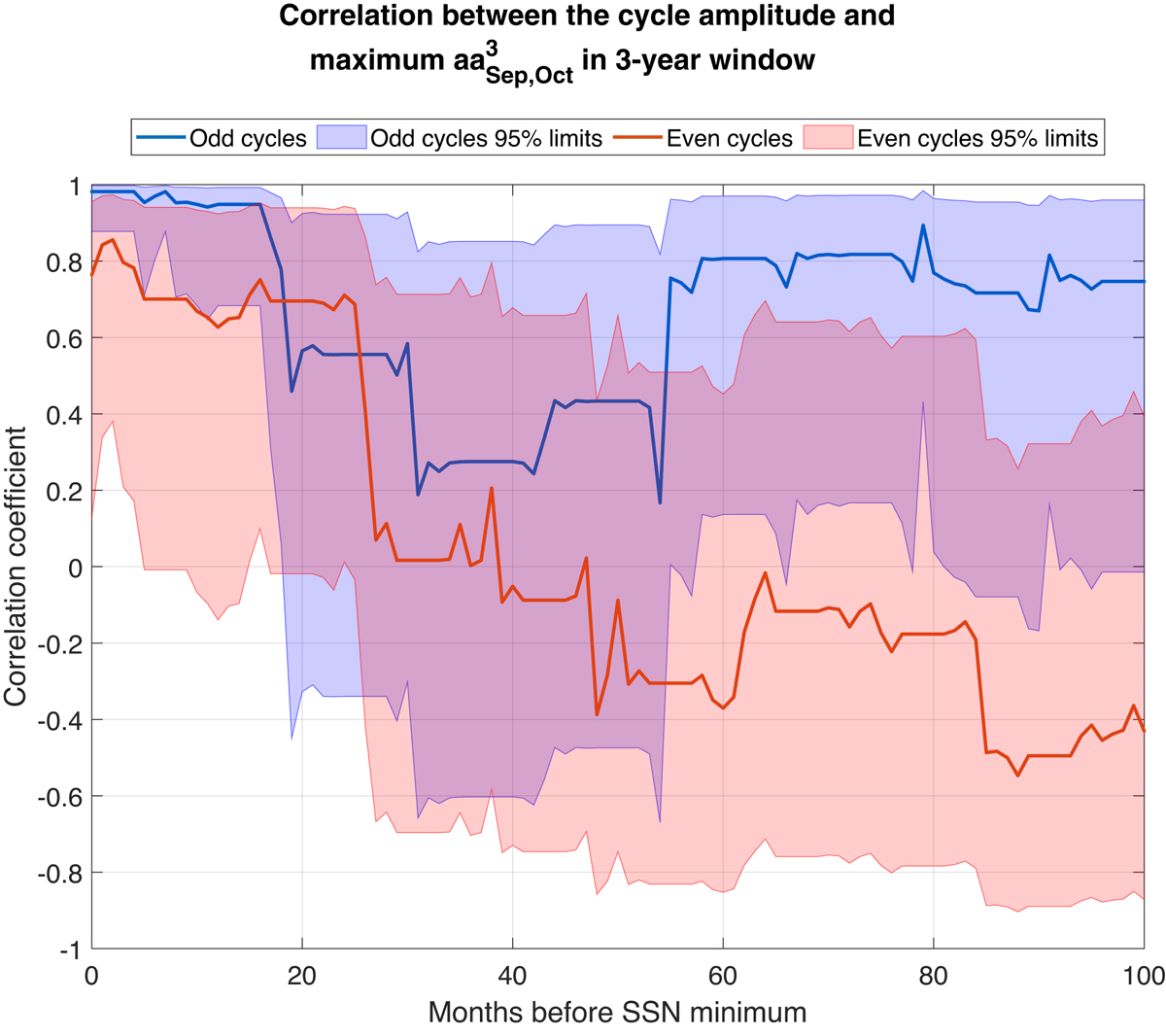

Correlation coefficient between cycle amplitude A and lagged maximum monthly September–October aa3 within a 3 year window. Blue (red) curve indicates the odd (even cycles) and the correspondingly colored regions indicate the 95% confidence limits for the correlation coefficients.
