Figure 8
Download original image

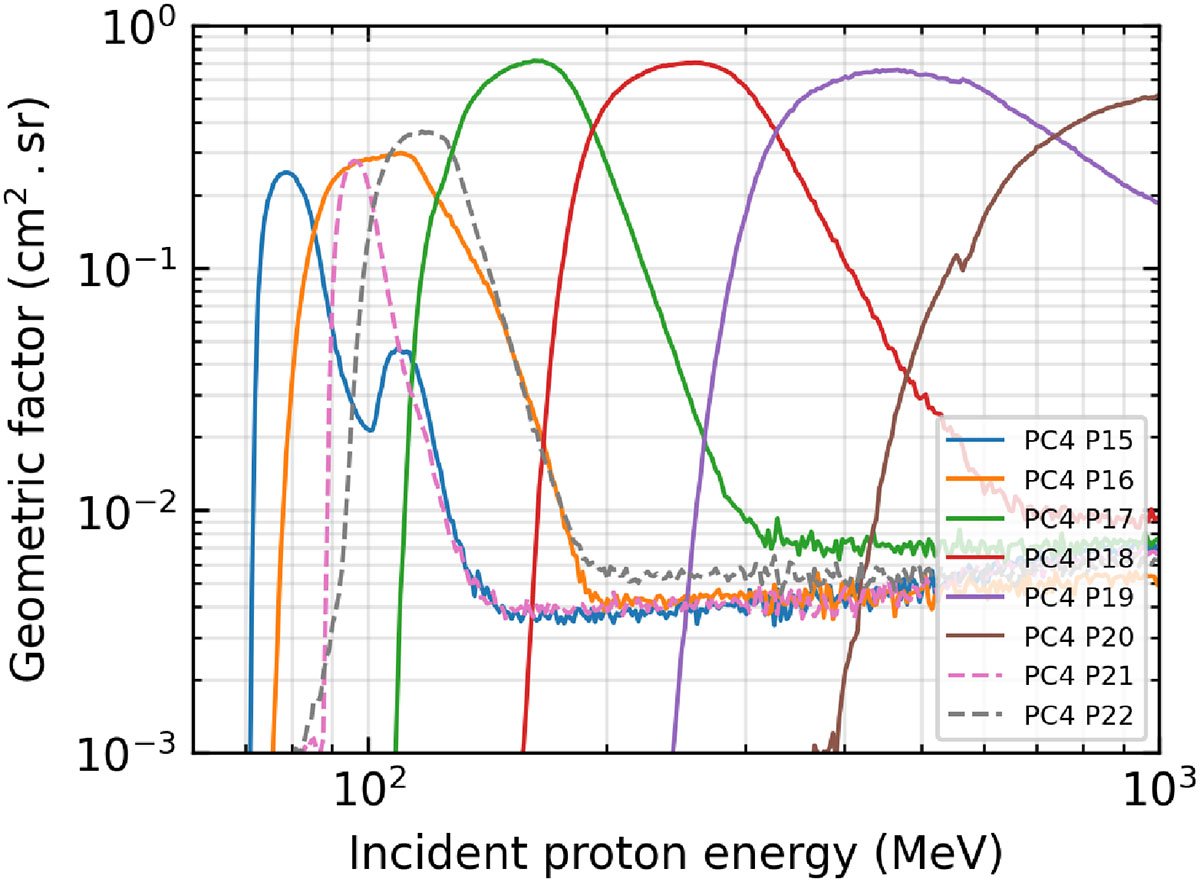

PC4 proton energy-loss channels response functions. Channels P15 and P16, which detect protons entering through the aperture, and channels P16–P20, sensitive to protons from both directions are plotted with solid lines. Channels P21 and P22 recording backward-penetrating protons are presented in dashed lines.
