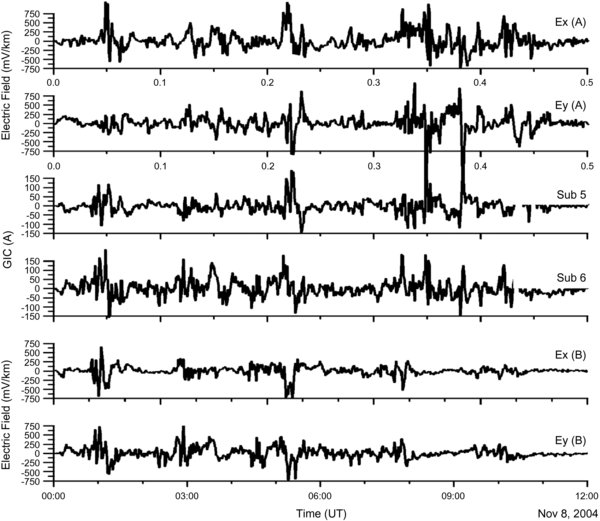

Calculations made using the Nodal Admittance Matrix method and superposition (Eq. (38)) of results for electric field components E X and E Y calculated using data from the Poste de la Baleine magnetic observatory (A) to the North and the Ottawa magnetic observatory (B) to the South to give the GIC at substations 5 and 6 in the sample network of Figure 7.
