Fig. 8.


Download original image

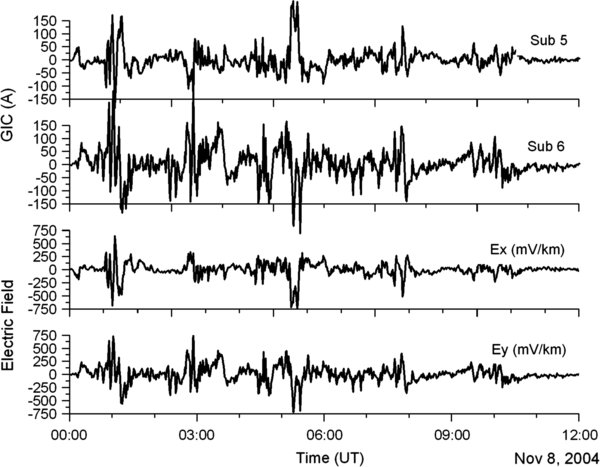

Calculations made using the Nodal Admittance Matrix method and superposition (Eq. (36)) of results for electric field components E X and E Y calculated using data from the Ottawa magnetic observatory to give the GIC at substations 5 and 6 in the sample network of Figure 7.
