Fig. 3.


Download original image

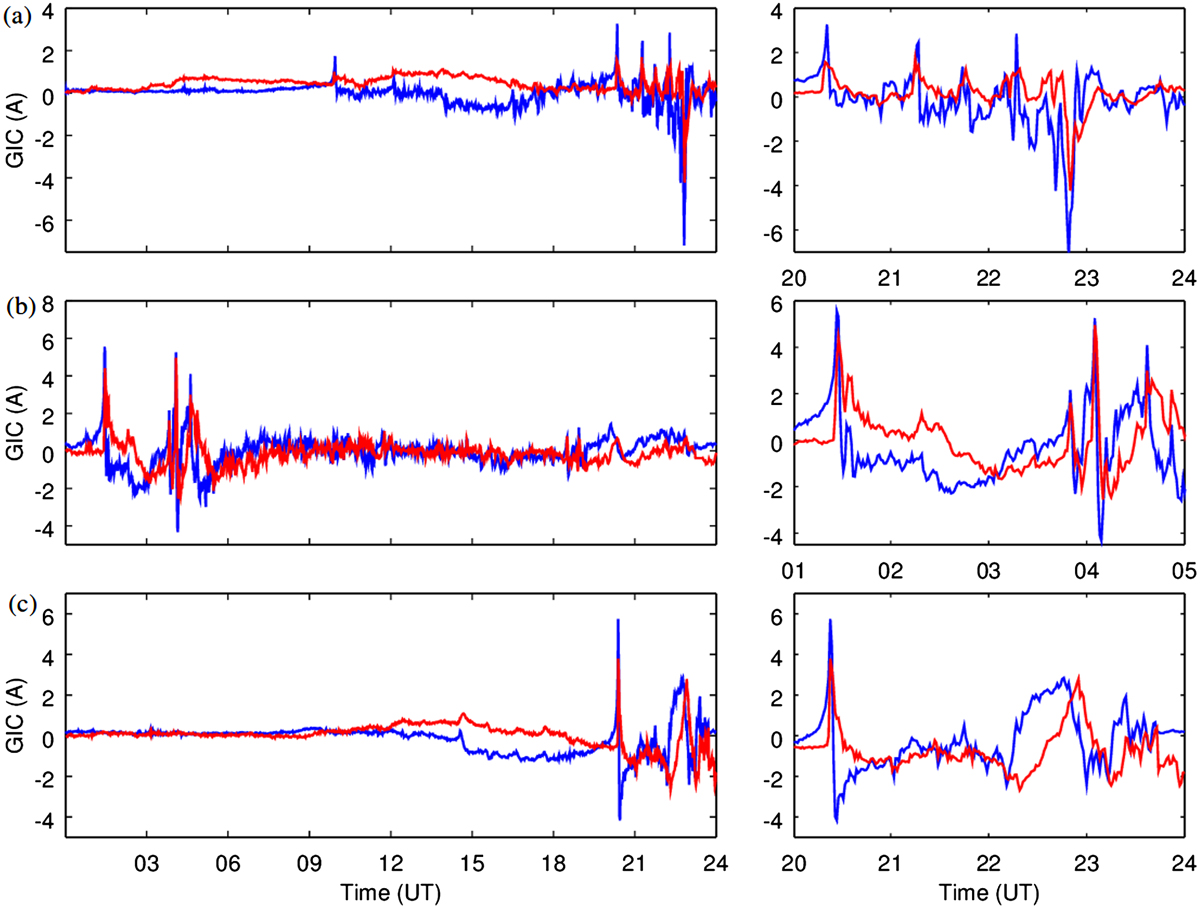

Calculated (blue) and measured (red) GIC in the neutral of the Itumbiara 500 kV transformer on (a) 16 June 2012, (b) 2 October 2013 and (c) 8 October 2013. The right panel shows a zoom at the intervals where peak of GIC occur.
