Fig. 4.


Download original image

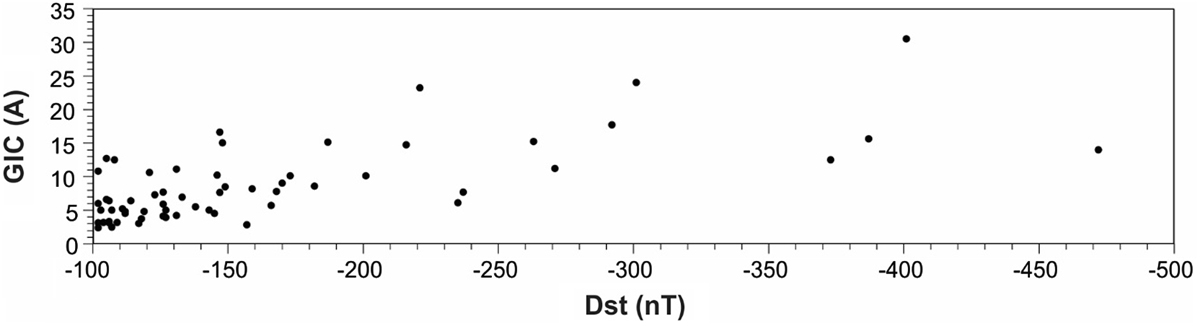

Daily maximum amplitude of calculated GIC in the neutral of the Itumbiara 500 kV transformer versus the intensity of the magnetic storm given by the Dst index during the solar cycle 23.
