Fig. 3


Download original image

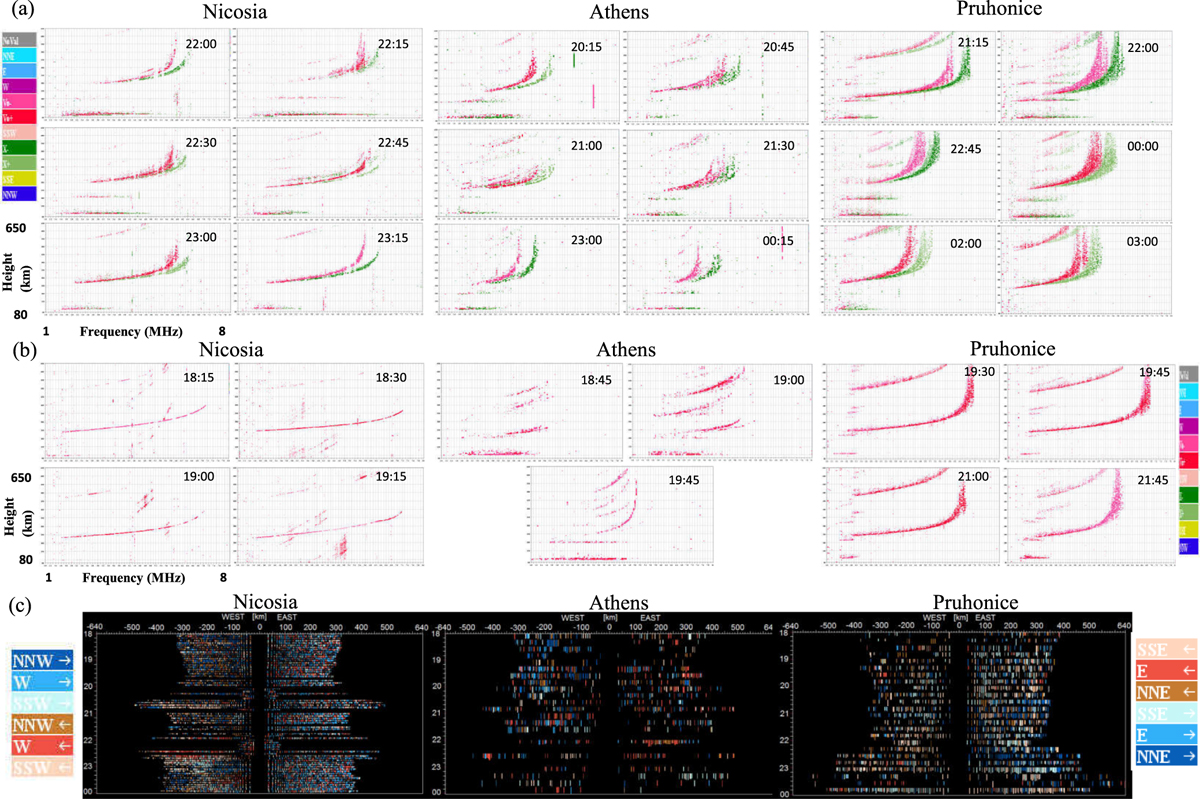

Case study of 3rd August 2015 (a) Ionograms recorded by the DPS-4D Ionosonde on 3rd–4th August over Nicosia, Athens and Pruhonice (b) Nicosia, Athens and Pruhonice ionograms with LSWS traces (c) Directogram over Nicosia, Athens and Pruhonice showing echoes from off-vertical directions.
