Fig. 10.


Download original image

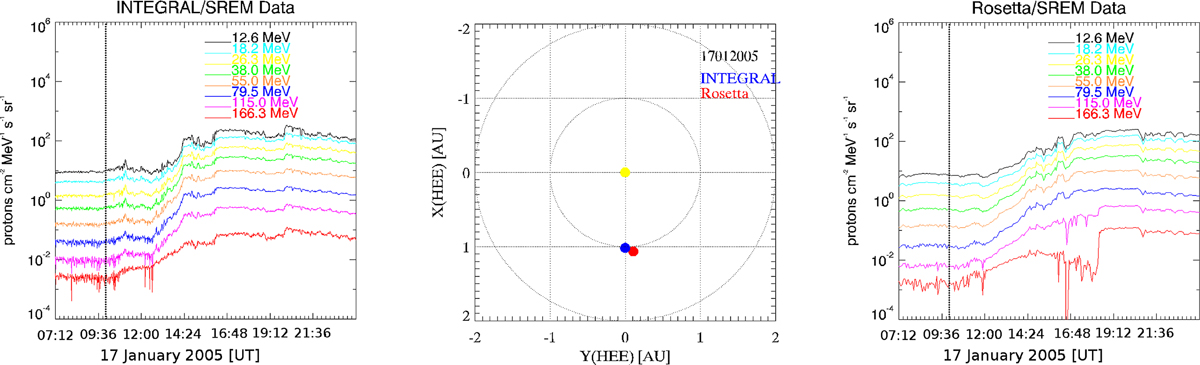

Calibrated, unsmoothed INTEGRAL/(left panel) and Rosetta/(right panel) SREM timeseries for SEP event I11/R5. The solid line in both panels denotes the onset of the SEP event at the respective spacecraft. The middle panel shows the positions of Rosetta (red) and INTEGRAL (blue) spacecraft relative to the Sun (yellow), with distances shown in AU.
