Fig. 15.


Download original image

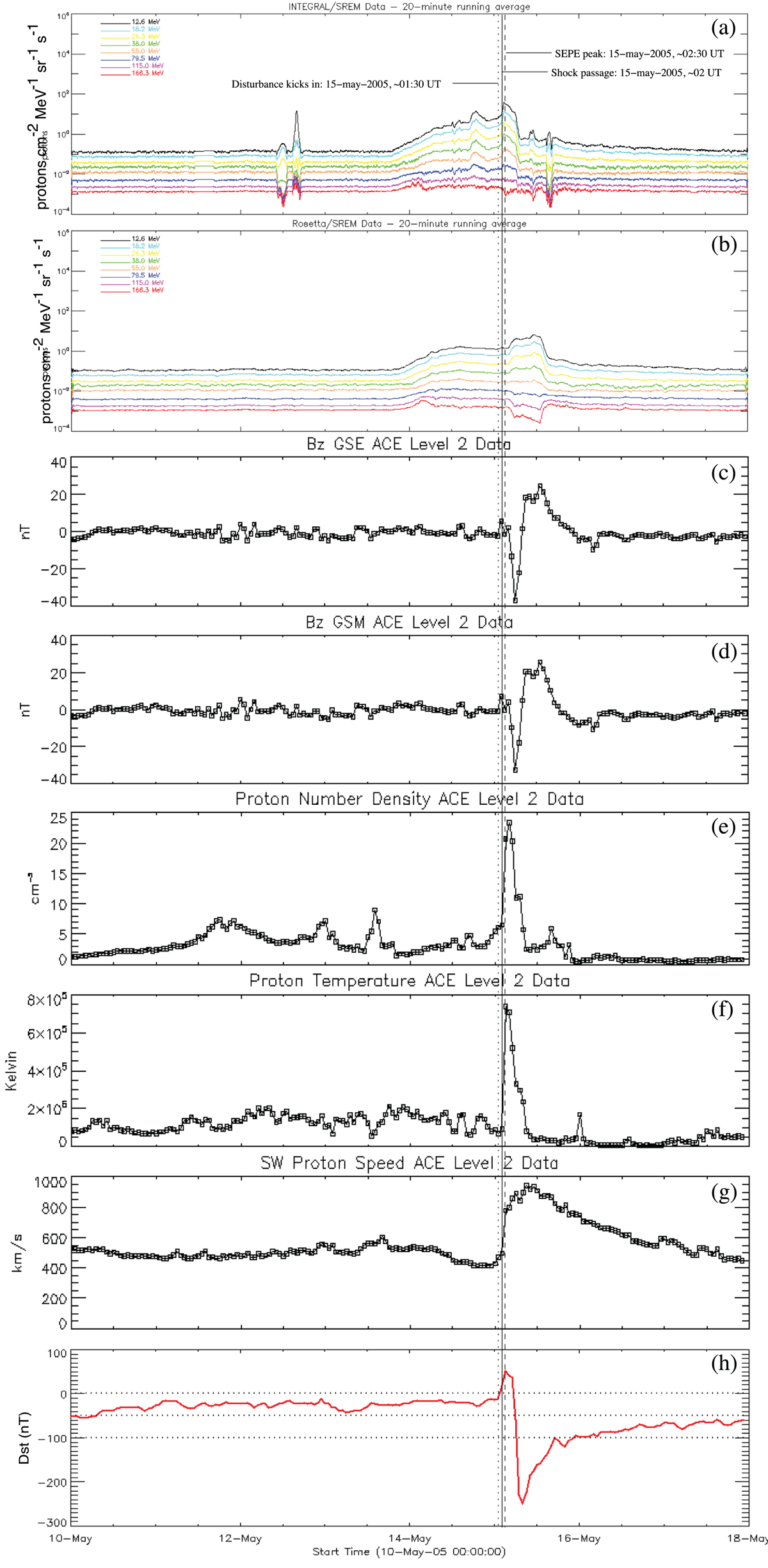

IP conditions between 2005 May 10 and 18, including SEP event I13/R7. (a) 20-minute running averages of the INTEGRAL/SREM particle flux timeseries, (b) 20-minute running averages of the Rosetta/SREM particle flux timeseries, ACE/MAG Bz-components in GSE (c) and GSM (d) coordinates and ACE/SWEPAM measurements of proton number density (e), proton temperature (f) and SW proton velocity (g). The respective definitive Dst-index values are given in (h). The three vertical lines indicate the times of the SEP event’s peak (dashed), the shock crossing from L1 (solid), and the onset of the magnetospheric disturbance (dotted). All respective dates and times are annotated in (a).
