Fig. 10.


Download original image

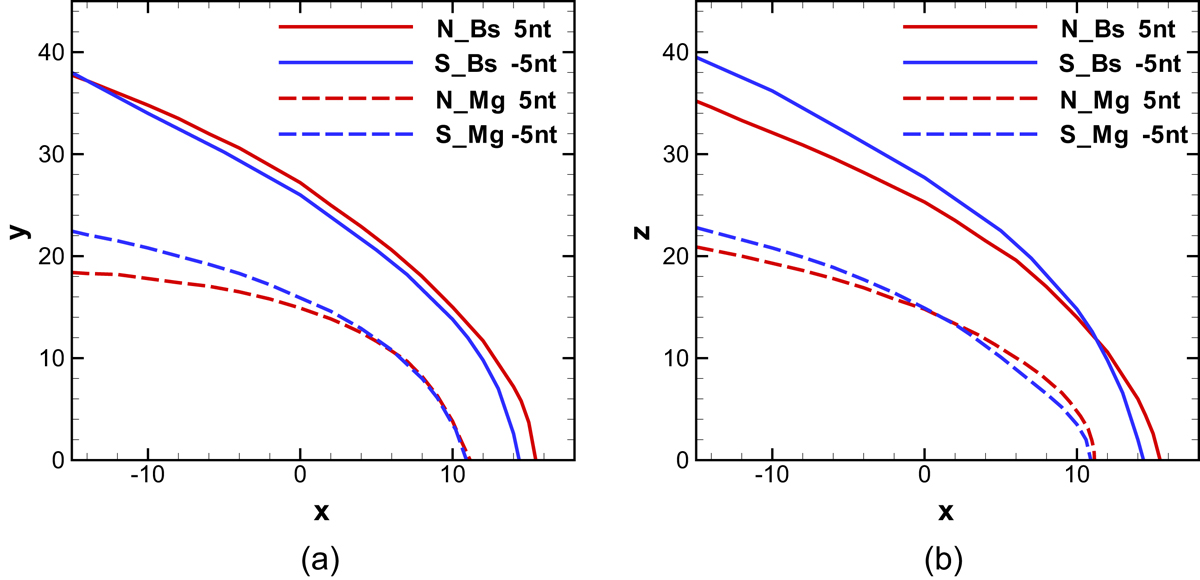

Positions of the magnetopause and bow shock on the (a) equatorial and (b) meridian planes for Case 1 and Case 4 from our simulations. Red solid and dashed lines denote the positions of the bow shock and magnetopause for Case 1, respectively. Blue solid and dashed lines denote the positions of the bow shock and magnetopause for Case 4, respectively.
