Figure 6
Download original image

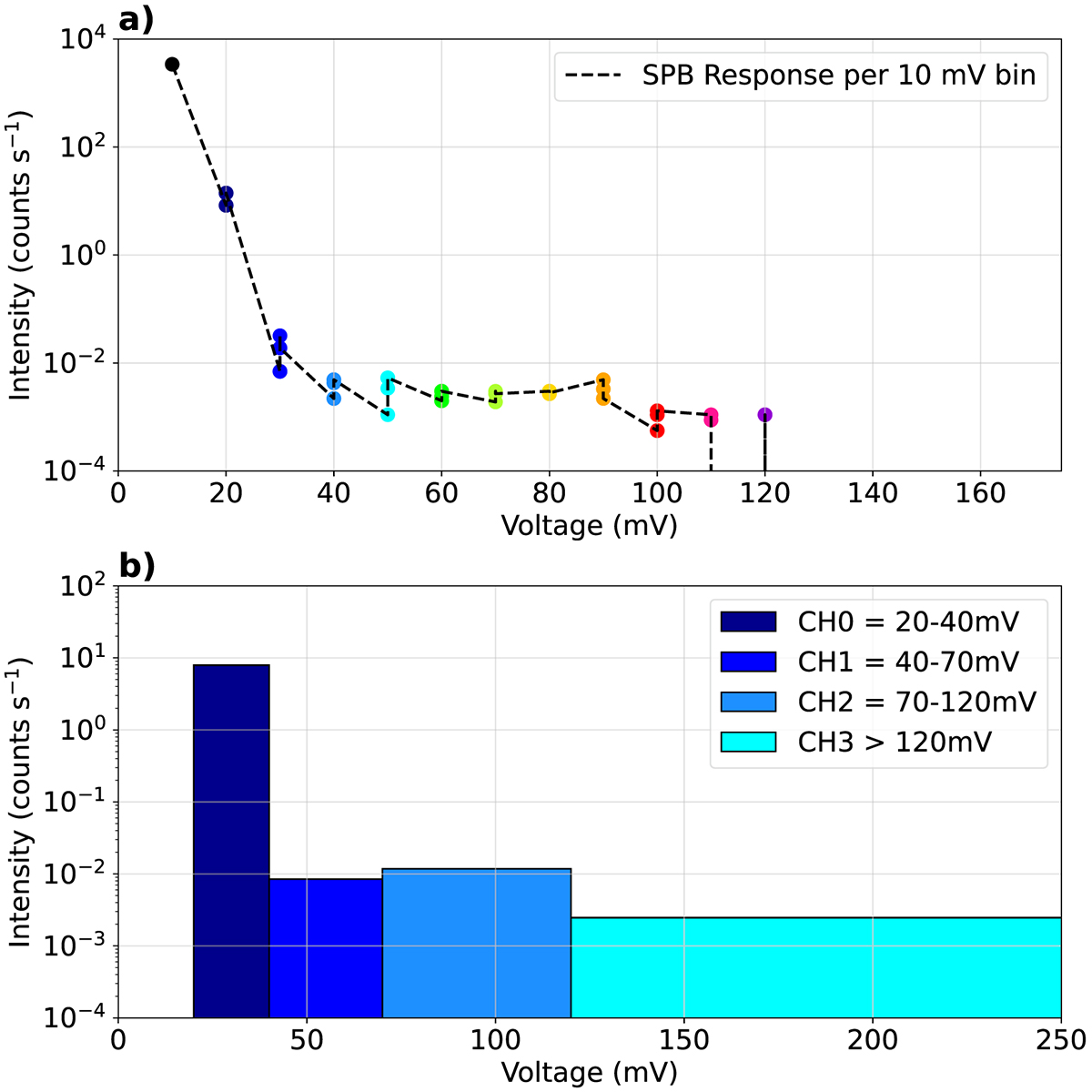

a) The response function of the SPB, determined from time normalised Cherenkov radiation fused silica measurements taken with the SPB bin voltages set to 10 mV wide channels. b) An example output of the SPB system, showing time-normalised Cherenkov radiation response for a fused silica radiator to background muons.
