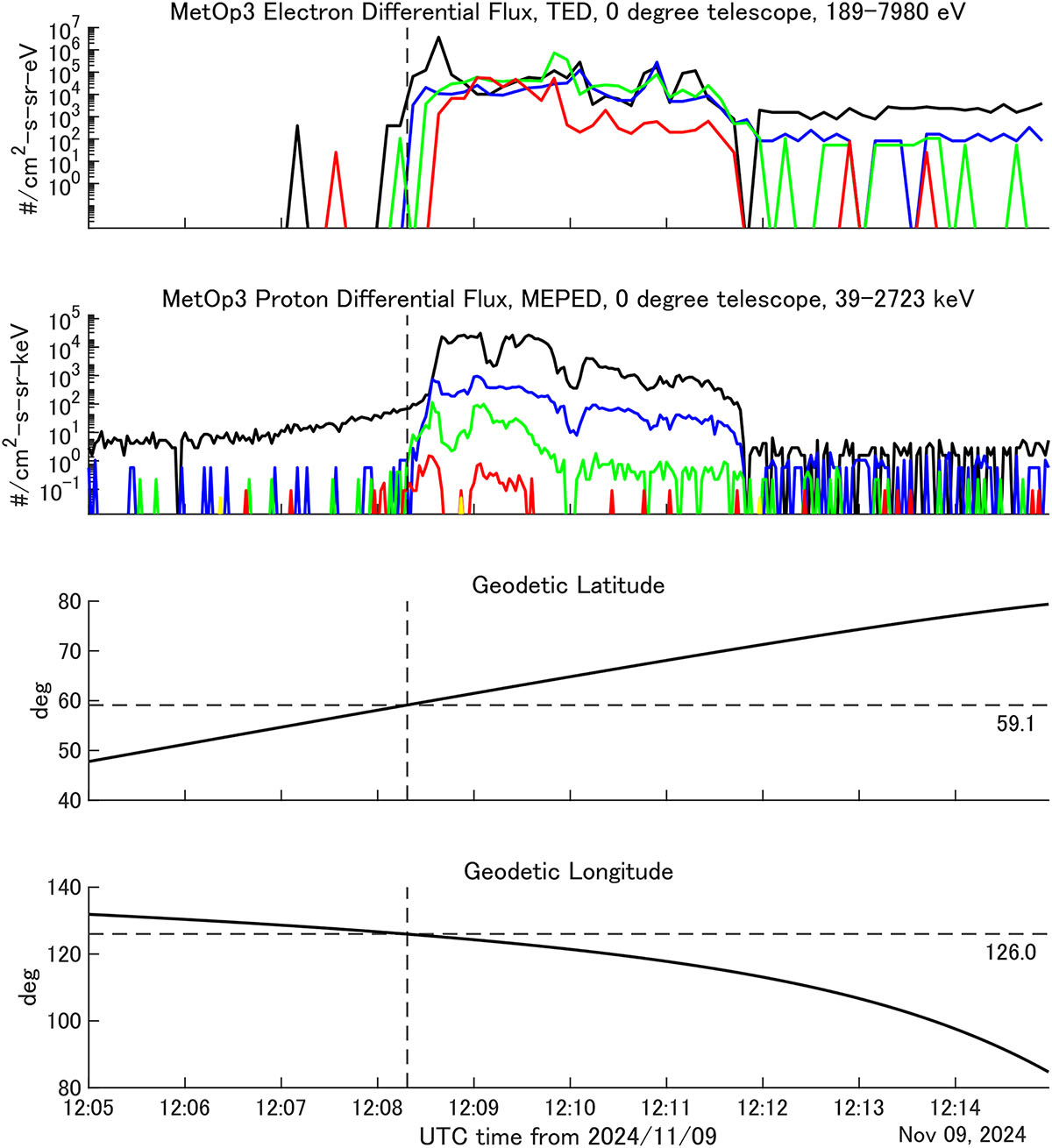

Figure 9

Download original image
MetOp3 satellite TED and MEPED data across the auroral oval for the time interval from 1205UT to 1215 UT, November 9, 2024. The energies of TED electron differential fluxes are 189, 844, 2,595, and 7,980 eV as colored by black, blue, green, and red, respectively. The energies of MEPED proton differential fluxes are 39, 115, 332, 1105, and 2723 keV as colored by black, blue, green, red and yellow, respectively. The MetOp3 satellite was located at near Japan’s meridian, i.e. 48–65°N and 132–121°E at that time. The location where the flux of 189 eV electron (black line) exceeds 103/cm2-s-sr-eV level is identified as the equatorward boundary of the auroral oval. In this case, the timing is 1208 UT, and the geographic coordinate is 59.1°N, 126.0°E.
